TGH-0380-01

Active

t-Global Technology

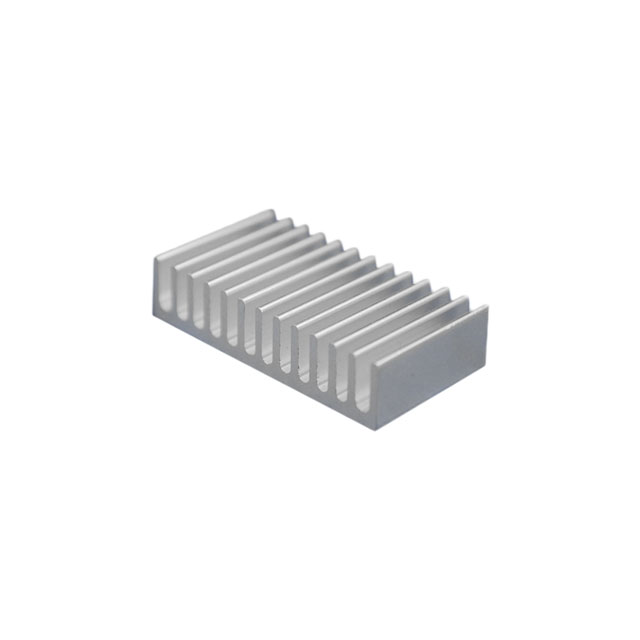

ALUMINIUM HEAT SINK 38X20MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 38X20MM

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Type	Material	Material Finish	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length	Length	Length [x]	Length [x]	Attachment Method
t-Global Technology TGH-0380-03	Fins Square	Top Mount	Aluminum	Black Anodized	0.354 in	9 mm	38 mm	1.496 in	1.496 in	38 mm
t-Global Technology TGH-0380-01	Rectangular Fins	Top Mount	Aluminum	Clean Anodized	0.354 in	9 mm	38 mm	1.496 in			0.787 "	20 mm
t-Global Technology TGH-0380-05	Pin Fins Square	Top Mount	Aluminum	Clean Anodized			38 mm	1.496 in	1.496 in	38 mm			Push Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 1.34

General part information

Heat Sink Aluminum Top Mount
