BVB01/Z0000/11

Active

BULGIN LIMITED

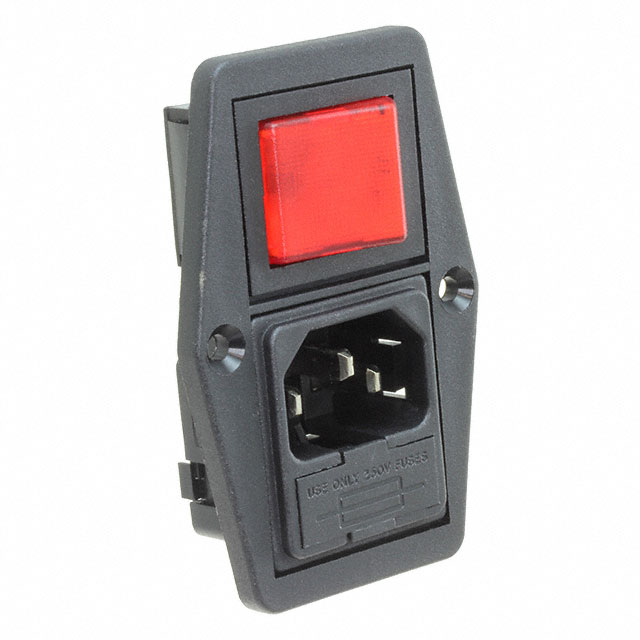

POWER ENTRY MODULE UNFILTERED M 3 POS FUSE/SWITCH ST 1 PORT

Search across all available documentation for this part.

Active

BULGIN LIMITED

POWER ENTRY MODULE UNFILTERED M 3 POS FUSE/SWITCH ST 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	BVB01/Z0000/11

Accomodates a Fuse	True
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33 mm
Panel Cutout Dimensions [y]	66.3 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Style	Current Rating - Appliance Inlet	Material Flammability Rating	Switch Features	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Fuse Holder, Drawer	Filter Type	Connector Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type
BULGIN LIMITED BVB01/Z0000/11	IEC 320-C14	10 A	UL94 V-0	Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect	Fuse Holder	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	33 mm	66.3 mm	Flange Panel Mount
BULGIN LIMITED BVB01/Z0000/01	IEC 320-C14	10 A	UL94 V-0	Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect	Fuse Holder	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	33 mm	53.2 mm	Flange Panel Mount
BULGIN LIMITED BVB01/Z0000/08	IEC 320-C14	10 A	UL94 V-0	Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect	Fuse Holder	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	33 mm	53.2 mm	Flange Panel Mount
BULGIN LIMITED BVB01/Z0000/12	IEC 320-C14	10 A	UL94 V-0	Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect	Fuse Holder	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	33 mm	66.3 mm	Flange Panel Mount
BULGIN LIMITED BVB01/Z0000/02	IEC 320-C14	10 A	UL94 V-0	Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect	Fuse Holder	Unfiltered - Commercial	Receptacle Male Blades - Module	CSA ENEC UL VDE	33 mm	53.2 mm	Flange Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
