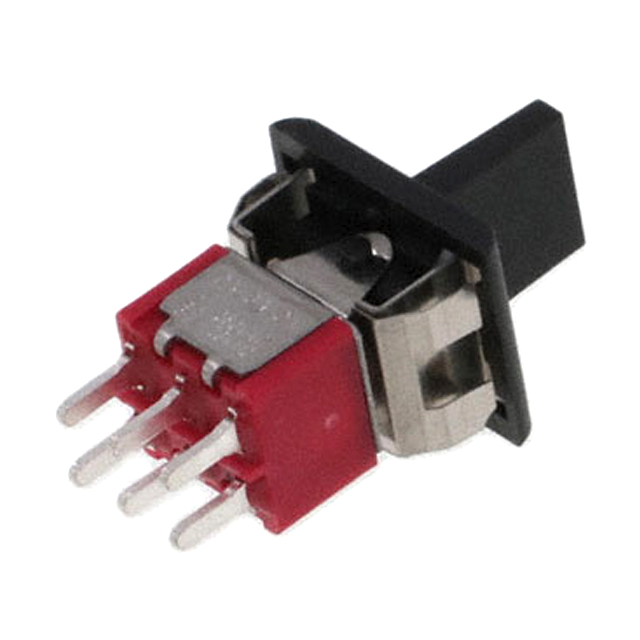

300DP6R7BLKM3QEBLK

Active

E-Switch

TRIPLE-POLE/SINGLE-THROW 28V 120V ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

TRIPLE-POLE/SINGLE-THROW 28V 120V ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	300DP6R7BLKM3QEBLK

Actuator Marking	No Marking
Actuator Type	Paddle
Circuit	SP3T
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Jumper needed to achieve triple throw
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	15.24 mm
Panel Cutout Dimensions [y]	12.7 mm
Switch Function	On-On-On
Termination Style	Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Current Rating (Amps)	Mounting Type	Actuator Marking	Circuit	Electrical Life	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Voltage Rating - AC	Termination Style	Actuator Type
E-Switch 300DP6R7BLKM3REBLK	Jumper needed to achieve triple throw	-30 ░C	85 °C	On-On-On	0.4 VA	Panel Mount Snap-In	No Marking	SP3T	40000 Cycles	20 V	12.7 mm	15.24 mm	Black	20 V	Quick Connect - 0.062" (1.5mm)	Paddle
E-Switch 300DP6R7BLKM3QEBLK	Jumper needed to achieve triple throw	-30 ░C	85 °C	On-On-On	5 A	Panel Mount Snap-In	No Marking	SP3T	40000 Cycles	28 V	12.7 mm	15.24 mm	Black	120 V	Quick Connect - 0.062" (1.5mm)	Paddle
E-Switch 300DP6R7BLKM1REBLK	Jumper needed to achieve triple throw	-30 ░C	85 °C	On-On-On	0.4 VA	Panel Mount Snap-In	No Marking	SP3T	40000 Cycles	20 V	12.7 mm	15.24 mm	Black	20 V	Solder Lug	Paddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SP3T 5A (AC/DC) 120 V Panel Mount, Snap-In
