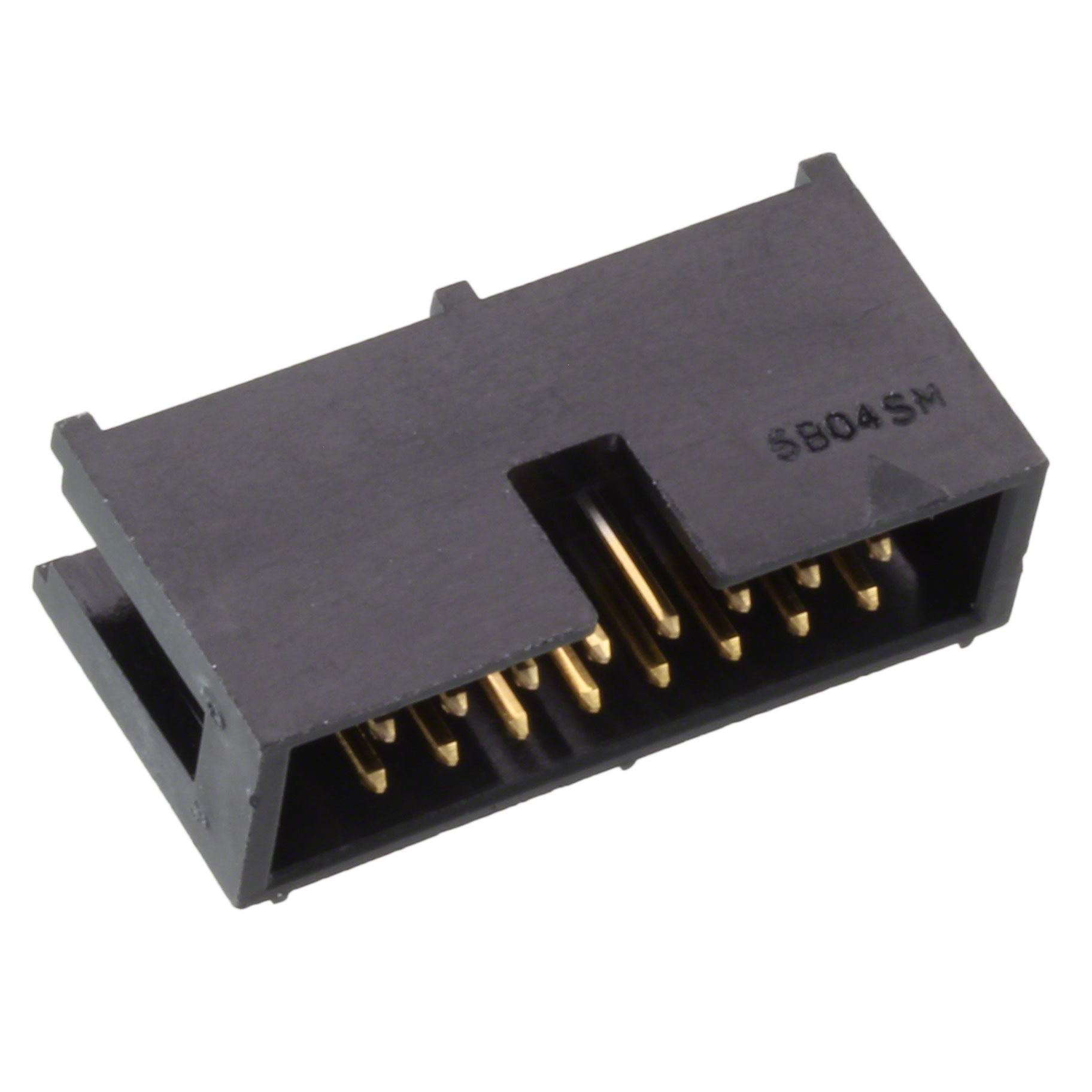

HIF3F-16PA-2.54DS(71)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3F-16PA-2.54DS(71)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3F-16PA-2.54DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

HIF3F Series

Part	Contact Type	Number of Positions	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Voltage Rating	Contact Shape	Style	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Features	Connector Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insulation Height	Insulation Height
Hirose Electric USA, Inc. HIF3F-50PA-2.54DSA(71)	Male Pin	50	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3F-10PA-2.54DSA(71)	Male Pin	10	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3F-20PA-2.54DSA(71)	Male Pin	20	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3F-16PA-2.54DSA(71)	Male Pin		2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C	16
Hirose Electric USA, Inc. HIF3F-34PA-2.54DSA(71)	Male Pin	34	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3F-40PA-2.54DS(71)	Male Pin	40	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole Right Angle	0.1 in	2.54 mm	Black	All			UL94 V-0			2.54 mm	0.1 in	0.118 in	3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C		0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF3F-20PA-2.54DS(71)	Male Pin	20	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole Right Angle	0.1 in	2.54 mm	Black	All			UL94 V-0			2.54 mm	0.1 in	0.118 in	3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C		0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF3F-16PA-2.54DS(71)	Male Pin		2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole Right Angle	0.1 in	2.54 mm	Black	All			UL94 V-0			2.54 mm	0.1 in	0.118 in	3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C	16	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF3F-10PA-2.54DS(71)	Male Pin	10	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole Right Angle	0.1 in	2.54 mm	Black	All			UL94 V-0			2.54 mm	0.1 in	0.118 in	3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C		0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF3F-40PA-2.54DSA(71)	Male Pin	40	2	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Tin	200 V	Square	Board to Cable/Wire	Latch Holder	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	Solder	Brass	Through Hole	0.1 in	2.54 mm	Black	All	15.8 mm	0.622 in	UL94 V-0	0.547 in	13.9 mm	2.54 mm	0.1 in	0.13 in	3.3 mm	Keying Slot	Header	Shrouded - 4 Wall	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.11
		10	$ 2.82
		80	$ 2.48
		440	$ 2.11
		1320	$ 1.80
		5280	$ 1.61

Description

General part information

HIF3F Series

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
