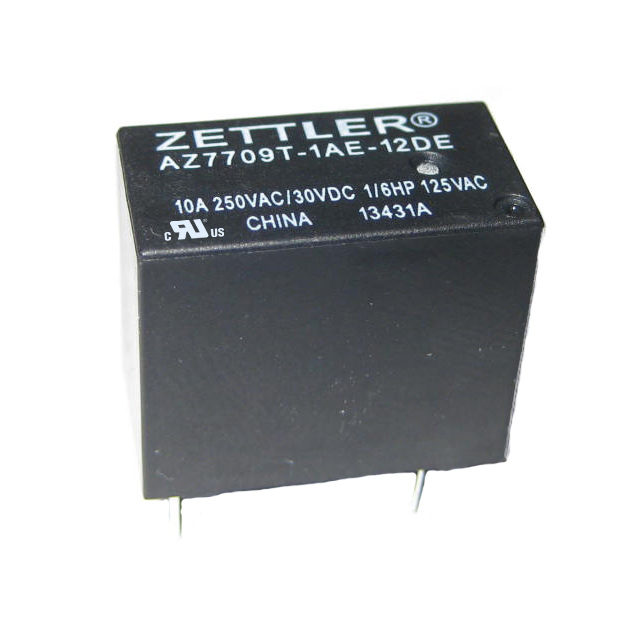

AZ7709-1AE-12DE

Active

American Zettler

RELAY GEN PURPOSE SPST 5A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ7709-1AE-12DE

Active

American Zettler

RELAY GEN PURPOSE SPST 5A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ7709-1AE-12DE

Approval Agency	TUV, cUR, UL
Coil Current	37.5 mA
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	5 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	0.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

AZ7709-1A Series

Part	Coil Current	Contact Rating (Current)	Seal Rating	Operate Time	Must Operate Voltage	Relay Type	Release Time	Contact Form	Switching Voltage [Max]	Termination Style	Coil Resistance	Coil Voltage	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Must Release Voltage	Load - Max Switching	Mounting Type	Coil Type	Coil Insulation
American Zettler AZ7709-1AE-18DSE	11.1 mA	5 A	Sealed - Fully	8 ms	13.5 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	1.62 kOhms	18 VDC	cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.9 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-3DSEF	66.7 mA	5 A	Sealed - Fully	8 ms	2.25 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	45 Ohms		cUR TUV UL	105 ░C	-40 °C	Silver Tin Oxide (AgSnO)	0.15 VDC	150 W 1250 VA	Through Hole	Non Latching	Class F
American Zettler AZ7709-1AE-3DS	66.7 mA	5 A		8 ms	2.25 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	45 Ohms		cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.15 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-3DEF	150 mA	5 A	Sealed - Fully	8 ms	2.1 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	20 Ohms		cUR TUV UL	105 ░C	-40 °C	Silver Tin Oxide (AgSnO)	0.15 VDC	150 W 1250 VA	Through Hole	Non Latching	Class F
American Zettler AZ7709-1AE-3DE	150 mA	5 A	Sealed - Fully	8 ms	2.1 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	20 Ohms		cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.15 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-5DSF	40 mA	5 A		8 ms	3.75 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	125 Ohms	5 VDC	cUR TUV UL	105 ░C	-40 °C	Silver Tin Oxide (AgSnO)	0.25 VDC	150 W 1250 VA	Through Hole	Non Latching	Class F
American Zettler AZ7709-1AE-6D	75 mA	5 A		8 ms	4.2 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	80 Ohms		cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.3 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-6DE	75 mA	5 A	Sealed - Fully	8 ms	4.2 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	80 Ohms		cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.3 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-12DE	37.5 mA	5 A	Sealed - Fully	8 ms	8.4 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	320 Ohms	12 VDC	cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	0.6 VDC	150 W 1250 VA	Through Hole	Non Latching
American Zettler AZ7709-1AE-48D	9.4 mA	5 A		8 ms	33.6 VDC	General Purpose	4 ms	SPST-NO (1 Form A)	30 VDC 250 VAC	PC Pin	5.12 kOhms	48 VDC	cUR TUV UL	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	2.4 VDC	150 W 1250 VA	Through Hole	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.85
		10	$ 0.80
		25	$ 0.71
		40	$ 0.67
		100	$ 0.64
		300	$ 0.57
		500	$ 0.53
		1000	$ 0.49
		4900	$ 0.48

Description

General part information

AZ7709-1A Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
