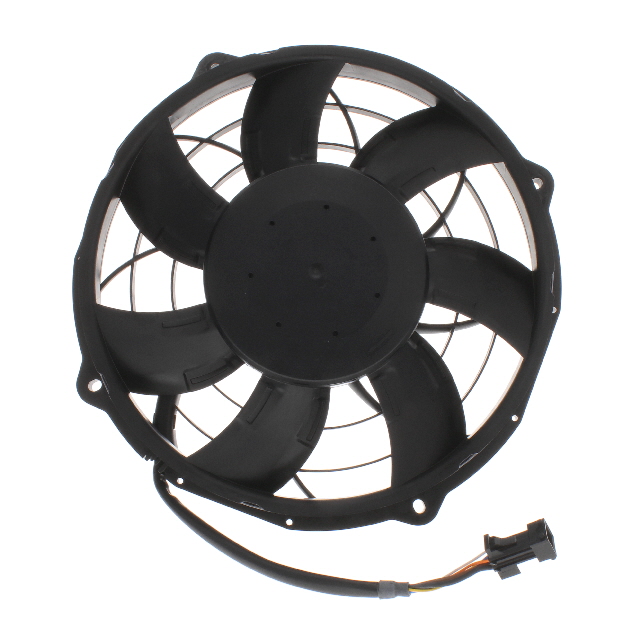

W3G300-BV12-41
Activeebm-papst Inc.
FAN AXIAL 340X76.5MM 13VDC RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W3G300-BV12-41
Activeebm-papst Inc.
FAN AXIAL 340X76.5MM 13VDC RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W3G300-BV12-41 |
|---|---|
| Air Flow | 26.39 mł/min |
| Air Flow | 942.4 CFM |
| Approval Agency | EAC |
| Bearing Type | Ball |
| Current Rating (Amps) | 16.7 A |
| Fan Type | Tubeaxial |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Nylon, Polyamide (PA) |
| Noise | 75 dB(A) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 220 W |
| RPM | 3200 RPM |
| Size / Dimension [diameter] | 340 mm |
| Termination | 6 Position Rectangular Connector |
| Voltage - Rated | 13 V |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 9 V |
| Width [x] | 76.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 356.55 | |
| 10 | $ 328.40 | |||
| 25 | $ 307.29 | |||
Description
General part information
W3G300 Series
Fan Tubeaxial 13VDC Round - 340mm Dia Ball 942.4 CFM (26.39mł/min) 6 Position Rectangular Connector
