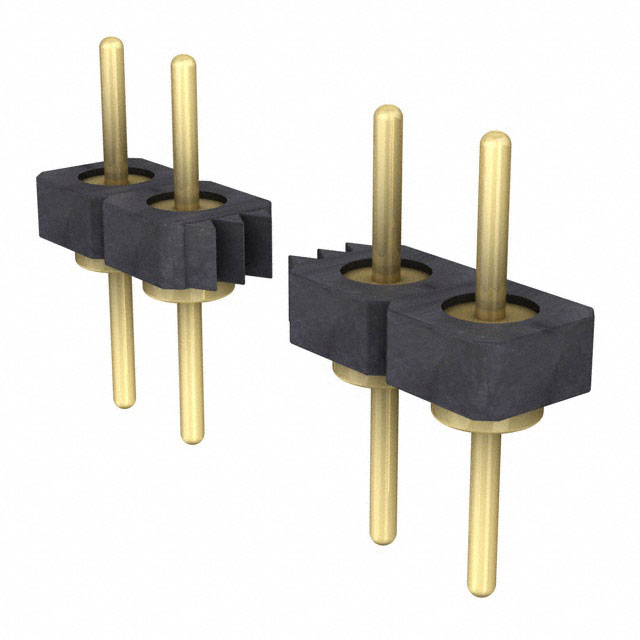

BBL-115-G-E

Active

Samtec Inc.

CONN HEADER VERT 15POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 15POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-115-G-E

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Material	Insulation Height	Insulation Height	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Fastening Type	Termination	Contact Finish - Post	Insulation Color	Contact Shape	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Contact Finish - Mating
Samtec Inc. BBL-115-T-F	3.18 mm	0.125 in	All	1.27 µm	50 µin	8.43 mm	0.332 in	1	Liquid Crystal Polymer (LCP)	0.085 "	2.15 mm	Through Hole	0.1 in	2.54 mm	Header	-55 °C	125 °C	Unshrouded	0.122 in	3.1 mm	15	Push-Pull	Solder	Nickel	Black	Circular	Male Pin
Samtec Inc. BBL-115-G-E	3.18 mm	0.125 in	All	1.27 µm	50 µin		7.62 mm	1	Liquid Crystal Polymer (LCP)	0.07 in	1.78 mm	Through Hole	0.1 in	2.54 mm	Header	-55 °C	125 °C	Unshrouded			15	Push-Pull	Solder	Nickel	Black	Circular	Male Pin	0.51 µm	20 µin	0.3 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 15 position 0.100" (2.54mm)
