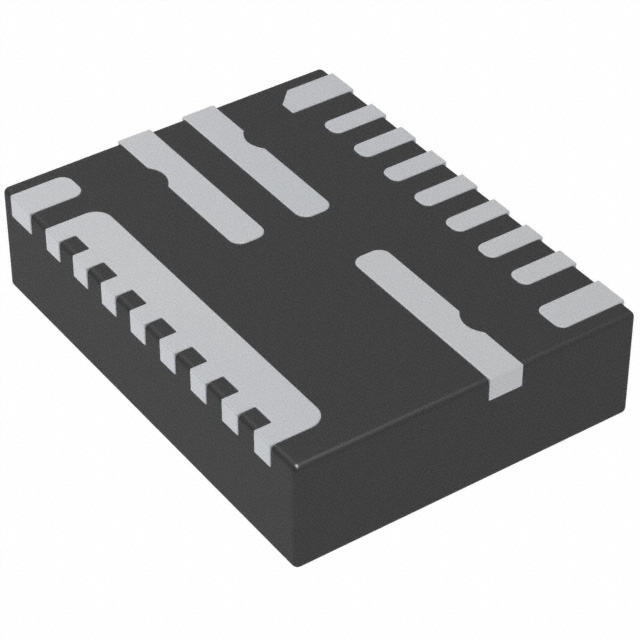

MPQ8634BGLE-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 20A 21QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ8634BGLE-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 20A 21QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ8634BGLE-P |
|---|---|
| Current - Output | 20 A |
| Frequency - Switching [Max] | 1.15 MHz |
| Frequency - Switching [Min] | 480 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 21-QFN (3x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output (Min/Fixed) | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.93 | |
| 10 | $ 7.17 | |||
| 25 | $ 6.83 | |||
| 100 | $ 5.93 | |||
| 250 | $ 5.67 | |||
| Digi-Reel® | 1 | $ 7.93 | ||
| 10 | $ 7.17 | |||
| 25 | $ 6.83 | |||
| 100 | $ 5.93 | |||
| 250 | $ 5.67 | |||
| Tape & Reel (TR) | 500 | $ 4.13 | ||
Description
General part information
MPQ8634 Series
Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 20A 21-PowerVFQFN
