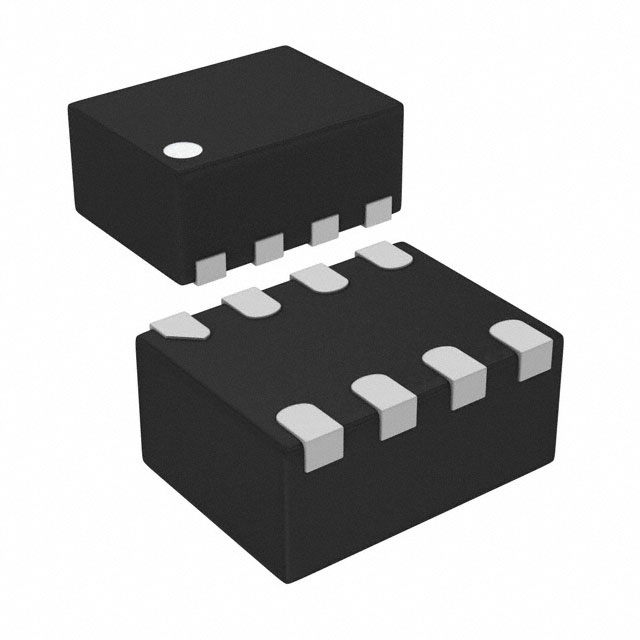

MPQ2177GQHE-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 1A 8QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 1A 8QFN

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Output Configuration	Topology	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Grade	Frequency - Switching	Function	Voltage - Output (Max)	Current - Output	Supplier Device Package	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output (Min/Fixed)	Output Type	Output Type	Main Purpose	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Utilized IC / Part	Voltage - Output
MONOLITHIC POWER SYSTEMS (MPS) MPQ2177GQHE-Z	8-VFDFN	Surface Mount	Positive	Buck	5.5 V	150 °C	-40 °C	AEC-Q100	Automotive	2.4 MHz	Step-Down	5 V	1 A	8-QFN (2x1.5)	2.5 V	1	0.6 V	Adjustable
MONOLITHIC POWER SYSTEMS (MPS) MPQ2177GQHE-18-AEC1-Z	8-VFDFN	Surface Mount	Positive	Buck	5.5 V	150 °C	-40 °C	AEC-Q100	Automotive	2.4 MHz	Step-Down		1 A	8-QFN (2x1.5)	2.5 V	1	1.8 V		1.81 mOhm
MONOLITHIC POWER SYSTEMS (MPS) MPQ2177GQHE-P	8-VFDFN	Surface Mount	Positive	Buck	5.5 V	150 °C	-40 °C	AEC-Q100	Automotive	2.4 MHz	Step-Down	5 V	1 A	8-QFN (2x1.5)	2.5 V	1	0.6 V	Adjustable
MONOLITHIC POWER SYSTEMS (MPS) EVQ2177-LE-00A										2.4 MHz			1 A							DC/DC Step Down	Board(s)	2.5 V	5.5 V	Non-Isolated	1	Fully Populated	Buck	MPQ2177	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A 8-VFDFN

Technical documentation and resources

No documents available
