SN232E

Active

Comet America, LP

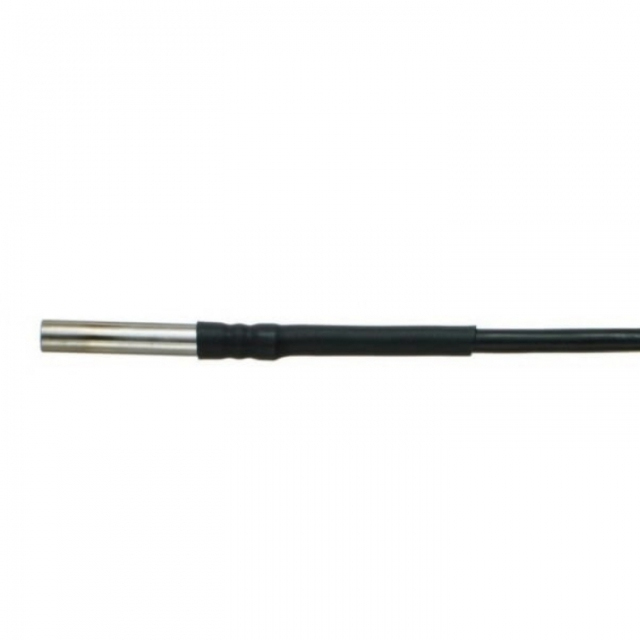

PT1000TG68/E, TEMP PROBE, 2 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TG68/E, TEMP PROBE, 2 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN232E

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	6 mm
Element Type	Pt1000
Length - Lead Wire [x]	6.562 ft
Length - Lead Wire [x]	2 m
Length - Protective Tube [x]	60 mm
Temperature Range [Max]	200 °C
Temperature Range [Min]	-58 °F
Terminal Type	Exposed Lead Wires

Part	Length - Lead Wire [x]	Length - Lead Wire [x]	Conductor Type	Length - Protective Tube [x]	Terminal Type	Temperature Range [Min]	Temperature Range [Max]	Diameter - Protective Tube [diameter]	Element Type
Comet America, LP SN232C	6.562 ft	2 m	Non-Grounded	60 mm	Exposed Lead Wires	-58 °F	200 °C	6 mm	Pt1000
Comet America, LP SN232E	6.562 ft	2 m	Non-Grounded	60 mm	Exposed Lead Wires	-58 °F	200 °C	6 mm	Pt1000
Comet America, LP SN232M	6.562 ft	2 m	Non-Grounded	60 mm	Exposed Lead Wires	-58 °F	200 °C	6 mm	Pt1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pt1000 Temperature Sensor -50°C ~ 200°C Non-Grounded Exposed Lead Wires
