5530222204F

Active

DIALIGHT

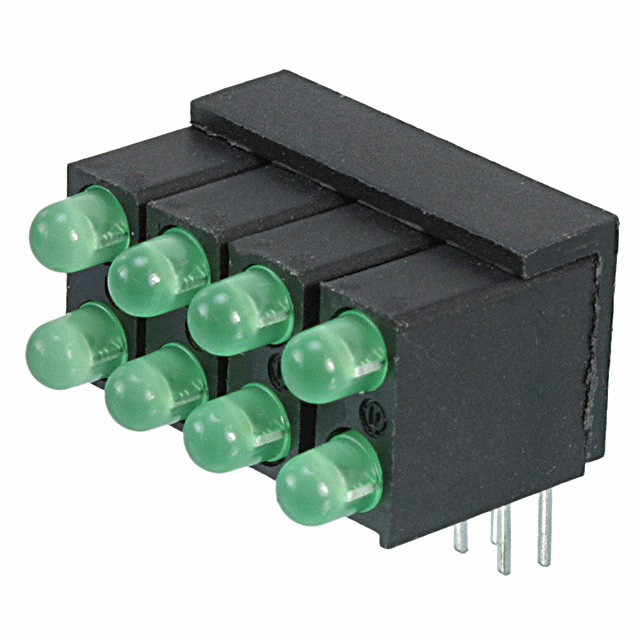

LED CBI 3MM 2X4 GREEN RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM 2X4 GREEN RA

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Lens Size	Configuration [y]	Configuration [z]	Voltage Rating	Millicandela Rating	Wavelength - Peak	Color	Lens Style	Lens Type	Viewing Angle	Mounting Type	Current	Configuration	Lens Size [diameter]
DIALIGHT 5530222002F	3 mm	T-1	2	2	1.9 V	1.6 mcd	565 nm	Green (x 4)	Round with Domed Top	Diffused Tinted	60 °	Through Hole Right Angle
DIALIGHT 5530222F					1.9 V	1.6 mcd	565 nm	Green (x 2)		Diffused Tinted		Through Hole Right Angle	2 mA	2 High
DIALIGHT 5530222400F					1.9 V	1.6 mcd	565 nm	Green (x 2)	Round with Domed Top	Diffused Tinted	60 °	Through Hole Right Angle		2 High	3 mm
DIALIGHT 5530222300F	3 mm	T-1			1.9 V	1.6 mcd	565 nm	Green (x 2)	Round with Domed Top	Diffused Tinted	60 °	Through Hole Right Angle	2 mA	2 High
DIALIGHT 5530222004F	3 mm	T-1	4	2	1.9 V	1.6 mcd	565 nm	Green (x 8)	Round with Domed Top	Diffused Tinted	60 °	Through Hole Right Angle
DIALIGHT 5530222804F	3 mm	T-1							Round with Domed Top			Through Hole Right Angle
DIALIGHT 5530222204F	3 mm	T-1	4	2		1.1 mcd	565 nm	Green (x 8)	Round with Domed Top		60 °	Through Hole Right Angle	7 mA
DIALIGHT 5530222006F			6	2	1.9 V	1.6 mcd	565 nm	Green (x 12)		Diffused Tinted	60 °	Through Hole Right Angle
DIALIGHT 5530222103F	3 mm	T-1	4	2	1.9 V	1.6 mcd	565 nm	Green (x 8)	Round with Domed Top	Diffused Tinted	60 °	Through Hole Right Angle
DIALIGHT 5530222808F	3 mm	T-1							Round with Domed Top			Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High x 4 Wide Green (x 8) 2.2V 7mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
