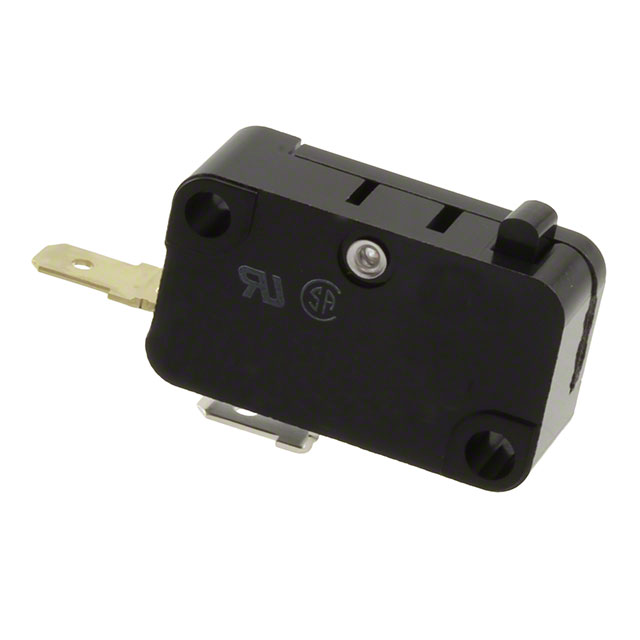

V-15G-3C26

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 15A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 15A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Switch Function	Termination Style	Operating Position	Operating Position	Ingress Protection	Electrical Life	Operating Force	Voltage Rating - AC	Differential Travel	Differential Travel	Pretravel	Pretravel	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Circuit	Actuator Type	Release Force	Overtravel	Overtravel	Current Rating (Amps)
Omron Electronics Inc-EMC Div V-15G-1B6-K	125 VDC	On-Mom	Screw Terminal	0.579 in	14.7 mm	IP40	100000 Cycles	400 gf	250 V	0.016 "	0.4 mm	0.047 in	1.2 mm	50000000 Cycles	-25 °C	80 C	Chassis Mount	SPDT	Round (Pin Plunger)	80 gf	0.04 in	1 mm	15 A 100 mA
Omron Electronics Inc-EMC Div V-15G-1C6-K	125 VDC	On-Mom	Quick Connect - 0.250" (6.3mm)	0.579 in	14.7 mm	IP40	100000 Cycles	400 gf	250 V	0.016 "	0.4 mm	0.047 in	1.2 mm	50000000 Cycles	-25 °C	80 C	Chassis Mount	SPDT	Round (Pin Plunger)	80 gf	0.04 in	1 mm	15 A 100 mA
Omron Electronics Inc-EMC Div V-15G-1A5-T-K
Omron Electronics Inc-EMC Div V-15G-3C26	125 VDC	Off-Mom	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	IP40	100000 Cycles	400 gf	250 V	0.016 "	0.4 mm	0.047 in	1.2 mm	50000000 Cycles	-25 °C	80 C	Chassis Mount	SPST-NO	Round (Pin Plunger)	80 gf	0.04 in	1 mm	15 A 100 mA
Omron Electronics Inc-EMC Div V-15G-1C24-K	125 VDC	On-Mom	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	IP40	100000 Cycles	100 gf	250 V	0.016 "	0.4 mm	0.047 in	1.2 mm	50000000 Cycles	-25 °C	80 C	Chassis Mount	SPDT	Round (Pin Plunger)	20 gf	0.04 in	1 mm	15 A 100 mA
