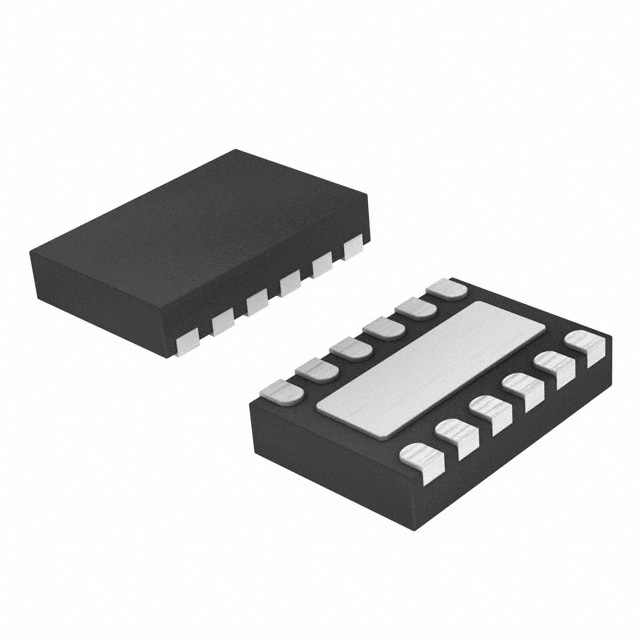

UCC28230DRNT

Obsolete

Texas Instruments

IC REG CTRLR MULT TOP 12-SON

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC REG CTRLR MULT TOP 12-SON

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28230DRNT

Clock Sync	False
Control Features	Soft Start, Frequency Control
Frequency - Switching [Max]	550 kHz
Frequency - Switching [Min]	100 kHz
Function	Step-Up/Step-Down
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package / Case	12-UFDFN Exposed Pad
Supplier Device Package	12-USON (3x2)
Synchronous Rectifier	False
Topology	Half-Bridge, Push-Pull, Full-Bridge
Voltage - Supply (Vcc/Vdd) [Max]	17 V
Voltage - Supply (Vcc/Vdd) [Min]	7 V

Part	Mounting Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration	Function	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Output Phases	Control Features	Topology
Texas Instruments UCC28230PW	Surface Mount	0.173 "	4.4 mm	14-TSSOP	17 V	7 V	4	125 ¯C	-55 °C	Transistor Driver	Positive	Step-Up/Step-Down	550 kHz	100 kHz	14-TSSOP	1	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull
Texas Instruments UCC28230DRNT	Surface Mount			12-UFDFN Exposed Pad	17 V	7 V	4	125 ¯C	-55 °C	Transistor Driver	Positive	Step-Up/Step-Down	550 kHz	100 kHz	12-USON (3x2)	1	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull
Texas Instruments UCC28230PWR	Surface Mount	0.173 "	4.4 mm	14-TSSOP	17 V	7 V	4	125 ¯C	-55 °C	Transistor Driver	Positive	Step-Up/Step-Down	550 kHz	100 kHz	14-TSSOP	1	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull
Texas Instruments UCC28230DRNR	Surface Mount			12-UFDFN Exposed Pad	17 V	7 V	4	125 ¯C	-55 °C	Transistor Driver	Positive	Step-Up/Step-Down	550 kHz	100 kHz	12-USON (3x2)	1	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 12-USON (3x2)

Technical documentation and resources

No documents available
