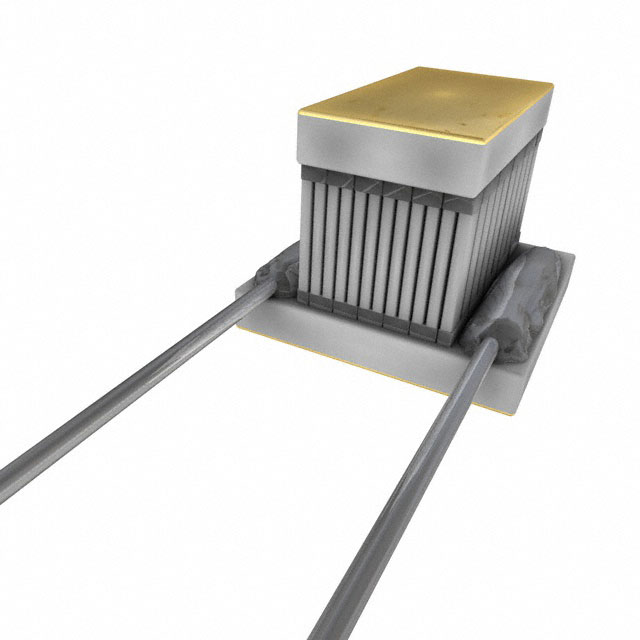

430290-503
Laird Thermal Systems, Inc.
PELTIER OT08,04,F0,0203,GG,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430290-503
Laird Thermal Systems, Inc.
PELTIER OT08,04,F0,0203,GG,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430290-503 |
|---|---|
| Current - Max [Max] | 800 mA |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.79 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 0.2 W |
| Resistance | 520 mOhms |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.62 | |
Description
General part information
430290 Series
Peltier Module 0.2W @ 25°C 0.8 A 80°C
