HDCB-37P(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 37POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDCB-37P(05)

Active

Hirose Electric USA, Inc.

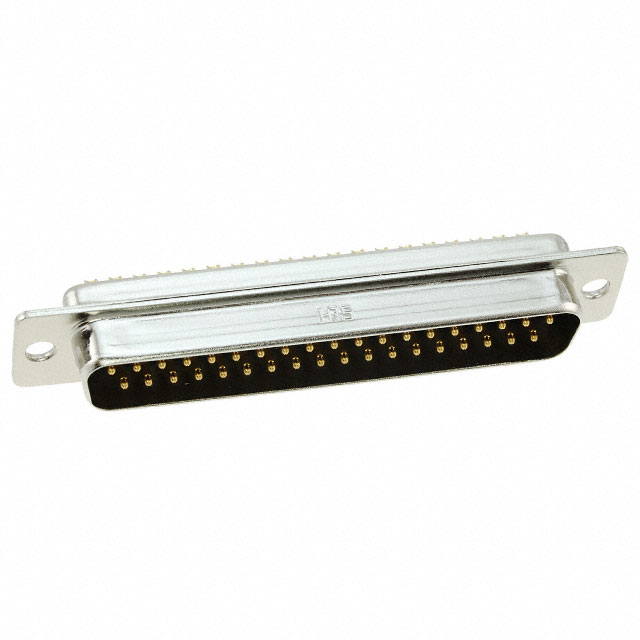

CONN D-SUB PLUG 37POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDCB-37P(05)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Voltage Rating	400 V

HDC Series

Part	Shielding	Primary Material	Material	Cable Exit	Accessory Type	Cable Type	Color	Features	Number of Positions	Hardware	Plating	Connector Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Number of Rows	Shell Size, Connector Layout	Contact Material	Contact Type	Connector Type	Dielectric Material	Voltage Rating	Material Flammability Rating	Flange Feature	Contact Form	Current Rating (Amps)	For Use With/Related Products
Hirose Electric USA, Inc. HDC-CTH(4-40)(10)	Unshielded	Plastic	Acrylonitrile Butadiene Styrene (ABS)	180 °	Two Piece Backshell	Round	Silver	Mating Screws 4-40	37	Assembly Hardware	Nickel
Hirose Electric USA, Inc. HDC-CTF1(50)	Unshielded	Plastic	Acrylonitrile Butadiene Styrene (ABS)	180 °	Two Piece Backshell	Round	Gray	Mating Screws M2.6	37	Assembly Hardware
Hirose Electric USA, Inc. HDC-CTH1(4-40)(10)	Unshielded	Plastic	Acrylonitrile Butadiene Styrene (ABS)	180 °	Two Piece Backshell	Round	Silver	Mating Screws 4-40	37	Assembly Hardware	Nickel
Hirose Electric USA, Inc. HDC-CTF(50)	Unshielded	Plastic	Acrylonitrile Butadiene Styrene (ABS)	180 °	Two Piece Backshell	Round	Gray	Mating Screws M2.6	37	Assembly Hardware
Hirose Electric USA, Inc. HDCB-37PF(05)							Black	Grounding Indents	37			D-Sub	Gold	85 °C	-40 °C	Nickel Plated Steel	2	4 (DC C)	Copper Alloy	Signal	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	400 V	UL94 V-0	Housing/Shell (Unthreaded)	Stamped	3 A
Hirose Electric USA, Inc. HDCB-37P(05)							Black		37			D-Sub	Gold	85 °C	-40 °C	Nickel Plated Steel	2	4 (DC C)	Copper Alloy	Signal	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	400 V	UL94 V-0	Housing/Shell (Unthreaded)	Stamped	3 A
Hirose Electric USA, Inc. HDC-CTF(4-40)(50)
Hirose Electric USA, Inc. HDC-C(50)					Cable Clamp				37																			D-Sub Connectors
Hirose Electric USA, Inc. HDC-NF-PJ(40)
Hirose Electric USA, Inc. HDC-37P(50)
