CB-05PMFP-SC7001 - CB-05PMFP-SC7001

CB-05PMFP-SC7001

Active
Amphenol LTW

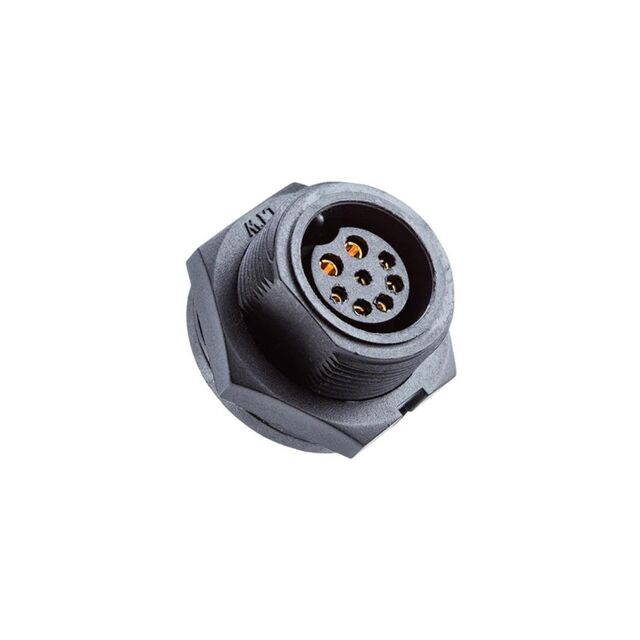

CERES, MIDDLE SIZE, 10A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
CB-05PMFP-SC7001 - CB-05PMFP-SC7001

CB-05PMFP-SC7001

Active
Amphenol LTW

CERES, MIDDLE SIZE, 10A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationCB-05PMFP-SC7001
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)10 A
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
Shell Size - InsertC
ShieldingUnshielded
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 10$ 7.64
NewarkEach 10$ 8.74
25$ 7.95
50$ 7.45
100$ 7.16
250$ 6.54

Description

General part information

CB-05PMFP Series

5 Position Circular Connector Receptacle, Female Sockets Solder
