C0472.18.03

Active

Prysmian Group

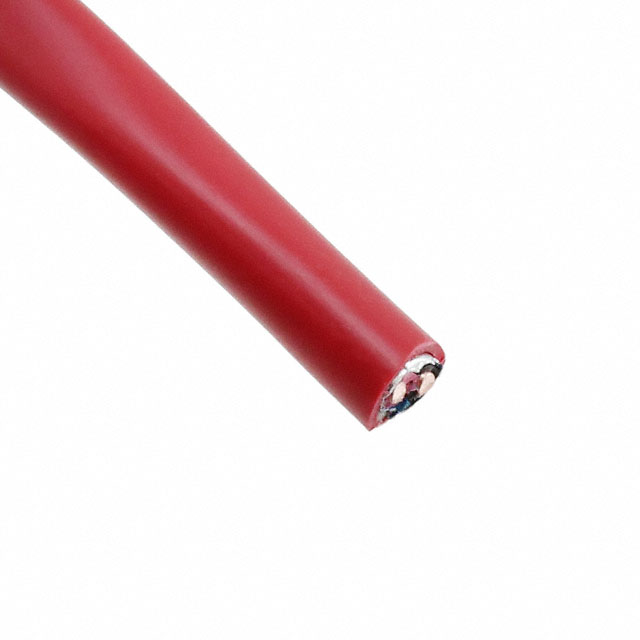

CABLE 2COND 18AWG RED SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG RED SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0472.18.03

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.182 in
Jacket (Insulation) Diameter [diameter]	4.62 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Conductor Strand	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Cable Type	Shield Type	Wire Gauge	Number of Conductors	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Ratings	Conductor Insulation	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Shield Coverage	Features
Prysmian Group C0472.41.03	1000 ft	15.24 m 304.8 m	Solid	300 V	0.182 in	4.62 mm	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Foil	18 AWG	2	50 ft 100 ft 500 '	30.5 m 152.4 m	60 °C	0 °C	Red	ASTM B-3	Polypropylene (PP)	Flexfoil®	0.02 in	0.508 mm	Alarm Safety	100 %	Drain Wire
Prysmian Group C0472.18.03			Solid	300 V	0.182 in	4.62 mm	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Foil	18 AWG	2	500 '	152.4 m	60 °C	0 °C	Red	ASTM B-3	Polypropylene (PP)	Flexfoil®	0.02 in	0.508 mm	Alarm Safety	100 %	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Multi-Conductor Cable Red 18 AWG Foil 500.0' (152.4m)
