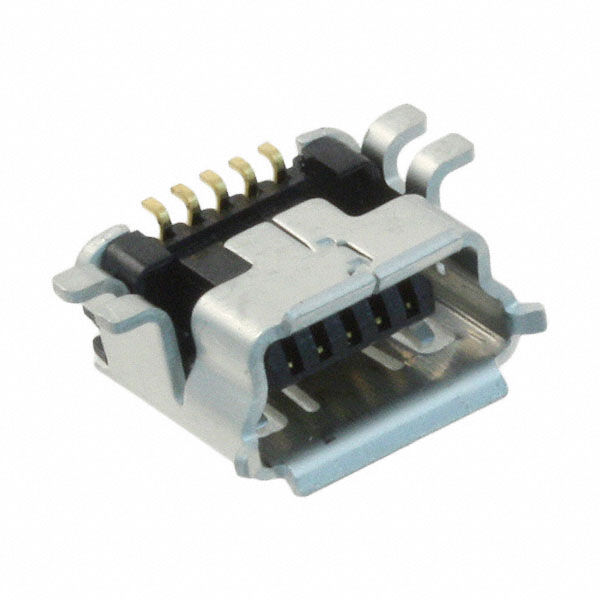

UX60SA-MB-5ST(80)
Hirose Electric USA, Inc.
CONN RCPT USB2.0 MINI B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UX60SA-MB-5ST(80)
Hirose Electric USA, Inc.
CONN RCPT USB2.0 MINI B SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UX60SA-MB-5ST(80) |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Features | Solder Retention |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Shell/Shielding Material | Copper Alloy |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.24 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.66 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.24 | |||
| Tape & Reel (TR) | 1000 | $ 1.09 | ||
| 2000 | $ 1.05 | |||
| 3000 | $ 1.02 | |||
| 5000 | $ 0.97 | |||
| 10000 | $ 0.95 | |||
Description
General part information
UX60SA Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
