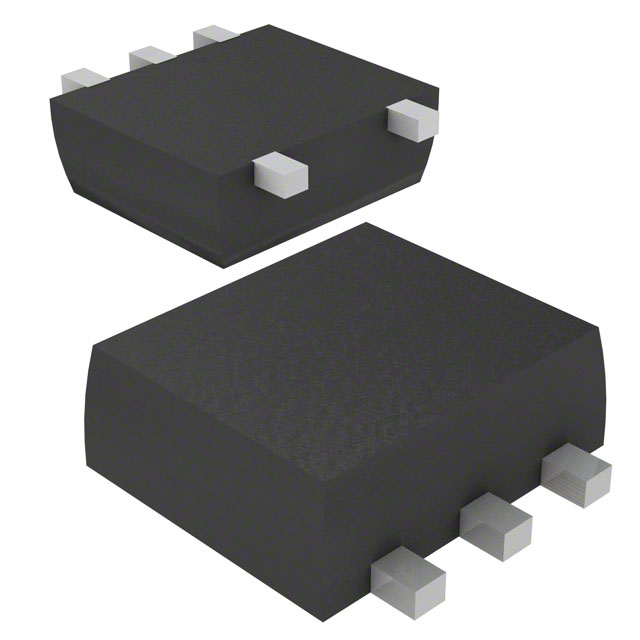

TCS30DLU,LF
ActiveToshiba Semiconductor and Storage
MAGNETIC SWITCH OMNIPOLAR UFV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCS30DLU,LF
ActiveToshiba Semiconductor and Storage
MAGNETIC SWITCH OMNIPOLAR UFV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCS30DLU,LF |
|---|---|
| Current - Output (Max) [Max] | 5 mA |
| Current - Supply (Max) [Max] | 1.3 mA |
| Function | Omnipolar Switch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Polarization | South Pole, North Pole |
| Sensing Range | 0.3 mT, 2.5 mT |
| Supplier Device Package | UFV |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
