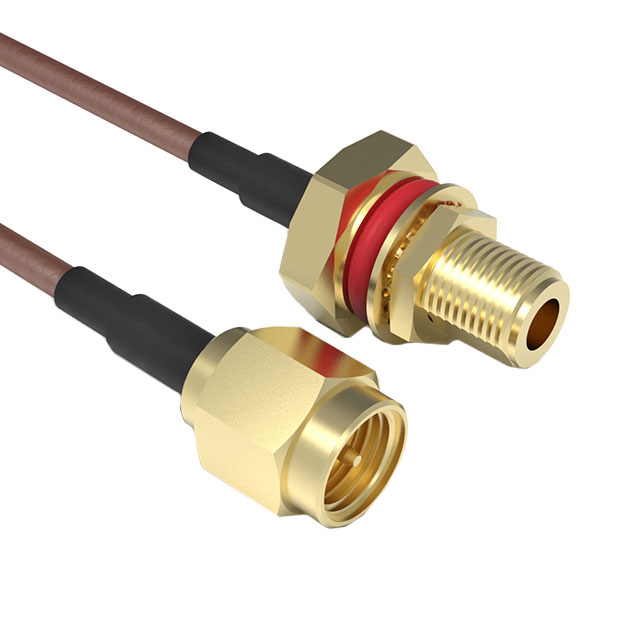

CABLE 243 RF-0300-A-1
ActiveGCT
CBL ASSY SMA JACK-PLUG 11.811"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 243 RF-0300-A-1
ActiveGCT
CBL ASSY SMA JACK-PLUG 11.811"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 243 RF-0300-A-1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 300 mm |
| Length [x] | 11.811 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.62 | |
| 10 | $ 13.85 | |||
| 25 | $ 13.31 | |||
| 50 | $ 12.78 | |||
| 100 | $ 12.07 | |||
| 250 | $ 11.01 | |||
| 500 | $ 10.30 | |||
| 1000 | $ 9.44 | |||
Description
General part information
CABLE 243 Series
Cable Assembly Coaxial SMA to SMA RG-178 11.811" (300.00mm)
