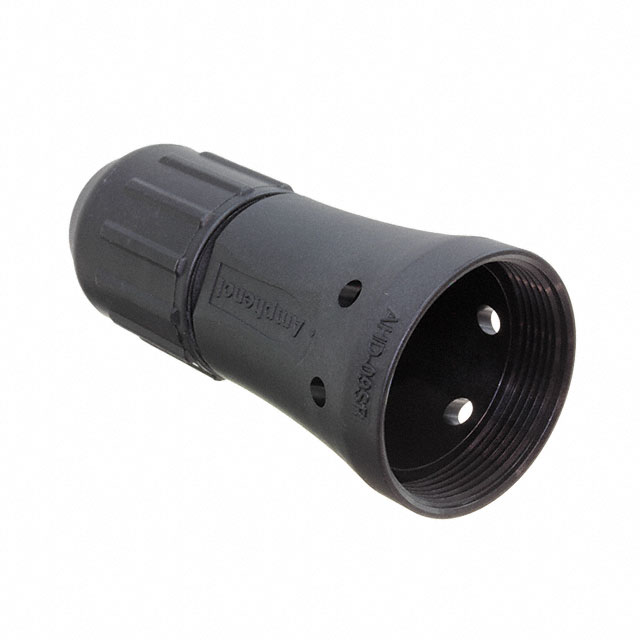

AHD-09SR
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL BLACK 1 3/8-18
Deep-Dive with AI
Search across all available documentation for this part.
AHD-09SR
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL BLACK 1 3/8-18
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHD-09SR |
|---|---|
| Cable Exit | 180 ° |
| Color | Black |
| Diameter - Outside [diameter] | 1.512 in |
| Diameter - Outside [diameter] | 38.4 mm |
| Features | Strain Relief |
| For Use With/Related Products | AHD™ Series Connector, 9 pos |
| Material | Thermoplastic |
| Shielding | Unshielded |
| Thread Size | 1 3/8-18 UNEF |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.93 | |
| 10 | $ 7.17 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.61 | |||
| 100 | $ 6.28 | |||
| 300 | $ 5.61 | |||
| 500 | $ 5.28 | |||
| 1000 | $ 4.62 | |||
Description
General part information
AHD-09 Series
Black Connector Backshell 1 3/8-18 UNEF
