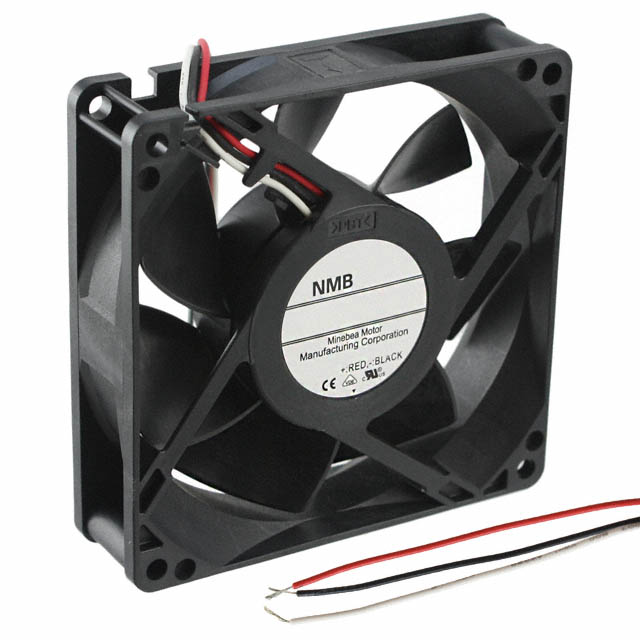

09225VA-12Q-AL-00

Active

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

DC Fans DC Axial Fan, 92x92x25mm, 24VDC, 96.4CFM, Flange Mount, 3-Lead Wires, Tachometer

Part	Static Pressure	Static Pressure	Features	Noise	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Material - Blade	RPM	Current Rating (Amps)	Material - Frame	Termination	Weight	Weight	Voltage - Rated	Width [y]	Air Flow	Air Flow	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Lifetime @ Temp.	Ingress Protection
NMB TECHNOLOGIES 09225VA-12Q-AL-00	149.9 Pa	0.602 in H2O	Locked Rotor Sensor	51 dB(A)	7 V	13.8 VDC	Ball	Plastic	5600 RPM	0.72 A	Plastic	3 Wire Leads	135.17 g	0.298 lb	12 VDC	25 mm	2.7 m³/min	96.4 CFM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	8.64 W	100000 Hrs
NMB TECHNOLOGIES 09225VA-24Q-CA-00	149.5 Pa	0.6 in H2O			14 VDC	27.6 VDC	Ball	Plastic	6200 RPM	0.38 A	Plastic	2 Wire Leads	150.14 g	0.331 lb	24 VDC	25 mm	2.7 m³/min	96.4 CFM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	9.12 W		IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 09225VA-12Q-CA-00	149.5 Pa	0.6 in H2O			7 V	13.8 VDC	Ball	Plastic	5600 RPM	0.72 A	Plastic	2 Wire Leads	150.14 g	0.331 lb	12 VDC	25 mm	2.7 m³/min	96.4 CFM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	8.64 W		IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 09225VA-24Q-ET-00	149.5 Pa	0.6 in H2O	Auto Restart Speed Sensor (Tach)		14 VDC	27.6 VDC	Ball	Plastic	5600 RPM	0.38 A	Plastic	3 Wire Leads			24 VDC	25 mm	2.7 m³/min	96.4 CFM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	9.1 W	100000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC Fans DC Axial Fan, 92x92x25mm, 24VDC, 96.4CFM, Flange Mount, 3-Lead Wires, Tachometer
