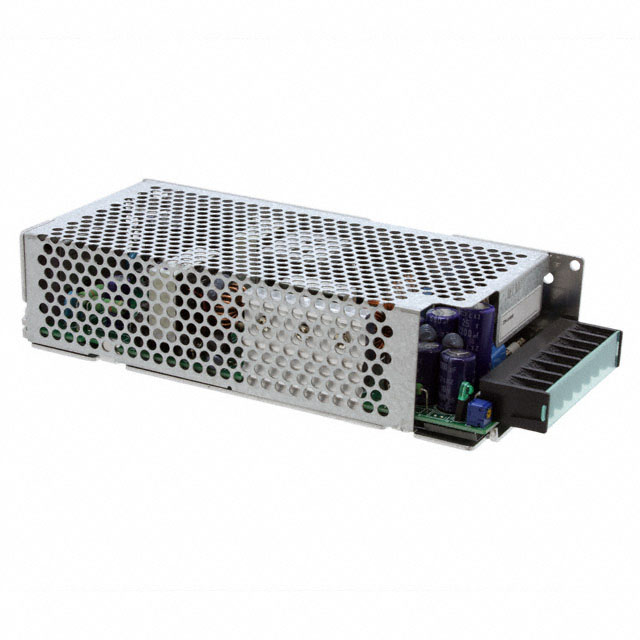

JWT100-5FF/A
TDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 3 OUTPUTS, 100 W, 5 V, 13 A, 15 V, 4.5 A
Deep-Dive with AI
Search across all available documentation for this part.
JWT100-5FF/A
TDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 3 OUTPUTS, 100 W, 5 V, 13 A, 15 V, 4.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JWT100-5FF/A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 13 A |
| Current - Output 2 | 4.5 A |
| Efficiency | 72 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 202.9 mm |
| Size / Dimension [x] | 7.99 in |
| Size / Dimension [y] | 3.62 " |
| Size / Dimension [y] | 91.9 mm |
| Size / Dimension [z] | 1.89 " |
| Size / Dimension [z] | 48 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JWT100 Series
Enclosed AC DC Converters 3 Output 5V 15V -15V 85 ~ 265 VAC Input
