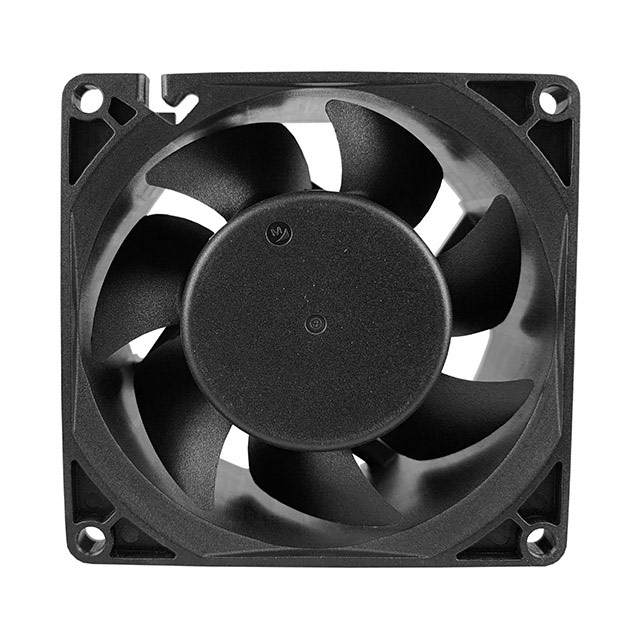

FMA1-08038WBHT12

Active

Qualtek

EC FAN, 80X80X38MM, 2-BALL BEARI

Search across all available documentation for this part.

Active

Qualtek

EC FAN, 80X80X38MM, 2-BALL BEARI

Technical Specifications

Parameters and characteristics for this part

Specification	FMA1-08038WBHT12

Air Flow	1.15 mł/min
Air Flow	41 CFM
Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5.5 W
RPM	4000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	70.5 Pa
Static Pressure	0.283 in H2O
Termination	2 Terminals
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Width [y]	38 mm

Part	Width [y]	Static Pressure	Static Pressure	Features	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Rated [Min]	Voltage - Rated [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Termination	Air Flow	Air Flow	Ingress Protection	Fan Type	RPM	Noise	Material - Blade	Current Rating (Amps)	Material - Frame	Bearing Type
Qualtek FMA1-08038WBHT12	38 mm	70.5 Pa	0.283 in H2O	Electronic Commutation (EC)	80 mm	80 mm	5.5 W	100 VAC	240 VAC	CE cURus	-20 °C	70 °C	-20 C	70 °C	70000 Hrs	2 Terminals	1.15 mł/min	41 CFM	IP54 - Dust Protected Water Resistant	Tubeaxial	4000 RPM	31 dB(A)	Plastic	0.09 A	Plastic	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 80mm L x 80mm H Ball 41.0 CFM (1.15m³/min) 2 Terminals
