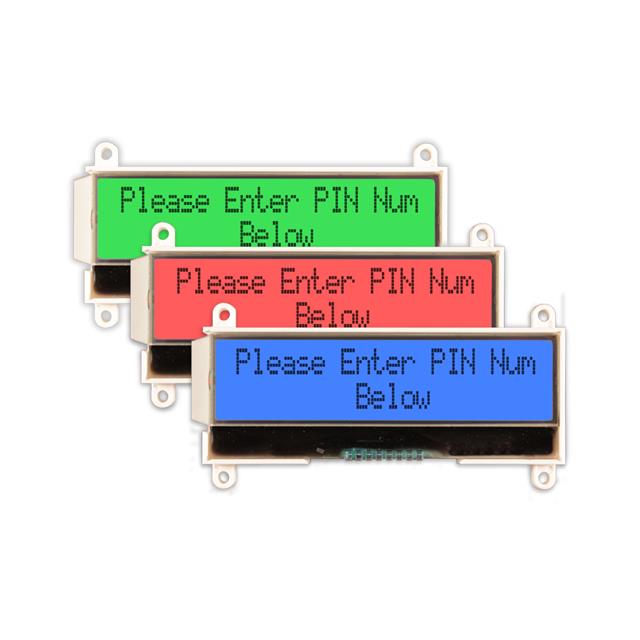

NHD-C0220BIZ-FS(RGB)-FBW-3VM

Active

Newhaven Display Intl

LCD MOD 40DIG 20X2 TRANSFL R/G/B

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 40DIG 20X2 TRANSFL R/G/B

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-C0220BIZ-FS(RGB)-FBW-3VM

Background Color	Green, Blue, Red
Backlight	LED, Red, Green, Blue
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.45 mm
Character Size [z]	5.55 mm
Controller Type	ST7036
Display Format [x]	20
Display Format [y]	2
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.45 mm
Dot Size [y]	0.65 mm
Interface	I2C
Number of Characters	40
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	75.7 mm
Outline L x W x H [y]	27.1 mm
Outline L x W x H [z]	6.8 mm
Text Color	Black
Viewing Area [x]	61 mm
Viewing Area [y]	15.1 mm
Voltage - Supply [Max]	3.5 V
Voltage - Supply [Min]	2.7 V

Part	Interface	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Voltage - Supply [Min]	Voltage - Supply [Max]	Dot Size [x]	Dot Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Character Size [y]	Character Size [z]	Display Mode	Viewing Area [x]	Viewing Area [y]	Backlight	Display Type	Controller Type	Character Format [y]	Character Format [x]	Number of Characters	Background Color	Display Format [x]	Display Format [y]
Newhaven Display Intl NHD-C0220AZ-FSW-FTW	Parallel	70.3 mm	25 mm	6.1 mm	4.5 V	5.5 V	0.45 mm	0.65 mm	-20 C	70 °C	Black	2.45 mm	5.55 mm	Transflective	61 mm	15.1 mm	LED - White	FSTN - Film Super-Twisted Nematic	NT-7605	8 Dots	5 Dots	40	White	20	2
Newhaven Display Intl NHD-C0220BIZ-FS(RGB)-FBW-3VM	I2C	75.7 mm	27.1 mm	6.8 mm	2.7 V	3.5 V	0.45 mm	0.65 mm	-20 C	70 °C	Black	2.45 mm	5.55 mm	Transflective	61 mm	15.1 mm	Blue Green LED Red	FSTN - Film Super-Twisted Nematic	ST7036	8 Dots	5 Dots	40	Blue Green Red	20	2
Newhaven Display Intl NHD-C0220AA-FSW-FTW	Parallel	70.3 mm	25 mm	6.1 mm	3.2 V	3.4 V	0.45 mm	0.65 mm	-20 C	70 °C	Black	2.45 mm	5.55 mm	Transflective	61 mm	15.1 mm	LED - White	FSTN - Film Super-Twisted Nematic	NT-7605	8 Dots	5 Dots	40	White	20	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red/Green/Blue I2C 75.70mm x 27.10mm x 6.80mm
