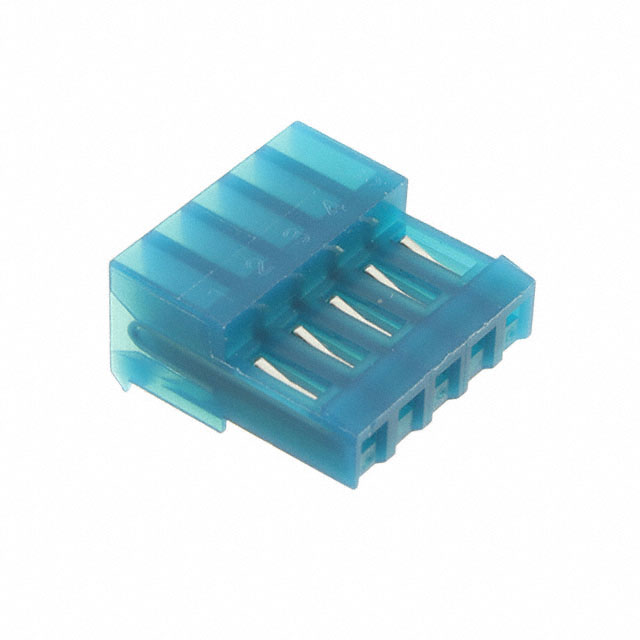

MTD-A-05-E-2

Active

Adam Tech

WIRE HOUSING IDC, .100", 26AWG,

Search across all available documentation for this part.

Active

Adam Tech

WIRE HOUSING IDC, .100", 26AWG,

Technical Specifications

Parameters and characteristics for this part

Specification	MTD-A-05-E-2

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Closed End
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Wire Gauge	26 AWG
Wire Type	Discrete or Ribbon Cable

Part	Pitch [x]	Pitch [x]	Wire Type	Connector Type	Number of Rows	Fastening Type	Contact Finish	Features	Wire Gauge	Cable Termination	Color	Contact Type	Mounting Type	Number of Positions	For Use With/Related Products	Accessory Type
Adam Tech MTD-A-05-D-2	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Closed End	24 AWG	IDC	White	Female Socket	Free Hanging (In-Line) Right Angle
Adam Tech MTD-A-03-E-1	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Feed Through	26 AWG	IDC	Blue	Female Socket	Free Hanging (In-Line) Right Angle
Adam Tech MTD-A-03-D-2	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Closed End	24 AWG	IDC	White	Female Socket	Free Hanging (In-Line) Right Angle
Adam Tech MTD-A-05-E-2	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Closed End	26 AWG	IDC	Blue	Female Socket	Free Hanging (In-Line) Right Angle
Adam Tech MTD-A-08-D-1	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Feed Through	24 AWG	IDC	White	Female Socket	Free Hanging (In-Line) Right Angle	8
Adam Tech MTD-AC-05														4	MTD-A Series	Cap (Cover)
Adam Tech MTD-AC-04														4	MTD-A Series	Cap (Cover)
Adam Tech MTD-A-05-D-1	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Feed Through	24 AWG	IDC	White	Female Socket	Free Hanging (In-Line) Right Angle
Adam Tech MTD-A-06-D-2	2.54 mm	0.1 in	Discrete or Ribbon Cable	Receptacle	1	Locking Ramp	Tin	Closed End	24 AWG	IDC	White	Female Socket	Free Hanging (In-Line) Right Angle	6
Adam Tech MTD-AC-02														2	MTD-A Series	Cap (Cover)
