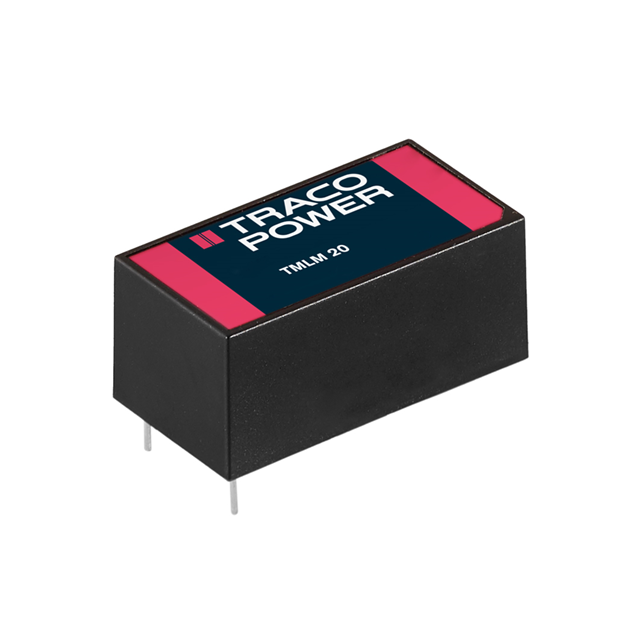

TMLM 20105
ActiveTraco Power
AC/DC POWER SUPPLY SINGLE-OUT 5V 3.6A 18W 4-PIN
Deep-Dive with AI
Search across all available documentation for this part.
TMLM 20105
ActiveTraco Power
AC/DC POWER SUPPLY SINGLE-OUT 5V 3.6A 18W 4-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMLM 20105 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 3.6 A |
| Efficiency | 78 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 18 W |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [x] | 52.4 mm |
| Size / Dimension [y] | 1.07 in |
| Size / Dimension [y] | 27.2 mm |
| Size / Dimension [z] | 23.5 mm |
| Size / Dimension [z] | 0.93 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TMLM 20 Series
Enclosed AC DC Converters 1 Output 5V 3.6A 90 ~ 264 VAC, 120 ~ 370 VDC Input
