G630HAA12246EU

Active

Amphenol ICC (Commercial Products)

CONN PCI EXP FMALE 164POS 0.039

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN PCI EXP FMALE 164POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	G630HAA12246EU

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Features	Locking Ramp, Card Extender
Flange Feature	0.079 in
Flange Feature	Straddle Mount Opening, Unthreaded
Flange Feature	2 mm
Gender	Female
Material - Insulation	Polyamide (PA9T), Nylon 9T
Mounting Type	Board Edge, Straddle Mount
Number of Positions	164
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Card Type	Features	Pitch [x]	Pitch [x]	Contact Material	Number of Positions	Number of Rows	Contact Finish	Material - Insulation	Color	Read Out	Termination	Gender	Mounting Type	Flange Feature	Flange Feature	Flange Feature
Amphenol ICC (Commercial Products) G630HAA2621EU	0.062 in	1.57 mm	0.76 Ám	30 Áin	PCI Express™	Board Guide Cap Locking Ramp	0.039 in	1 mm	Copper Alloy	164	2	Gold	Nylon 9T Polyamide (PA9T)	Black	Dual	Solder	Female	Surface Mount
Amphenol ICC (Commercial Products) G630HAA1621EU	0.062 in	1.57 mm	0.38 µm	15 µin	PCI Express™	Board Guide Cap Locking Ramp	0.039 in	1 mm	Copper Alloy	164	2	Gold	Nylon 9T Polyamide (PA9T)	Black	Dual	Solder	Female	Surface Mount
Amphenol ICC (Commercial Products) G630HAA12246EU	0.062 in	1.57 mm	0.38 µm	15 µin	PCI Express™	Card Extender Locking Ramp	0.039 in	1 mm	Copper Alloy	164	2	Gold	Nylon 9T Polyamide (PA9T)	Black	Dual	Solder	Female	Board Edge Straddle Mount	0.079 in	Straddle Mount Opening Unthreaded	2 mm
Amphenol ICC (Commercial Products) G630H982621EU	0.062 in	1.57 mm	0.76 Ám	30 Áin	PCI Express™	Locking Ramp	0.039 in	1 mm	Copper Alloy	98	2	Gold	Nylon 9T Polyamide (PA9T)	Black	Dual	Solder	Female	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

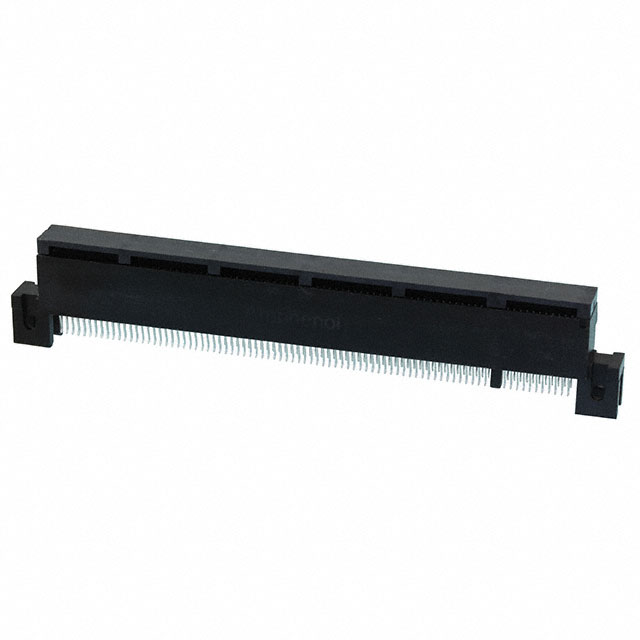

164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
