Technical Specifications
Parameters and characteristics for this part
| Specification | SZESD8451MUT5G |
|---|---|
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.2 pF |
| Current - Peak Pulse (10/1000µs) | 16 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power Line Protection | False |
| Qualification | AEC-Q101 |

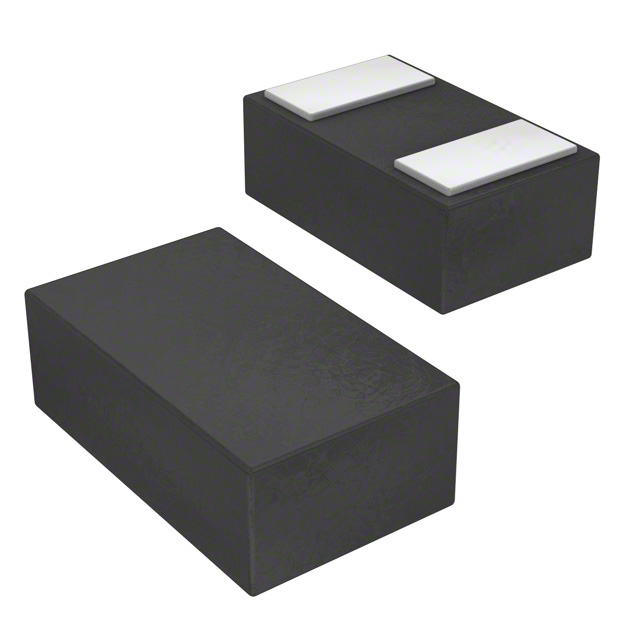

| Supplier Device Package | 2-X3DFN, 0201 |
| Supplier Device Package [x] | 0.6 |
| Supplier Device Package [y] | 0.3 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 5.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 19 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SZESD8451 Series
The ESD8451 Series transient voltage suppressors are designed to protect high speed data lines from ESD. Ultra-low capacitance and low ESD clamping make this device an ideal solution for protecting voltage sensitive high speed data lines.
