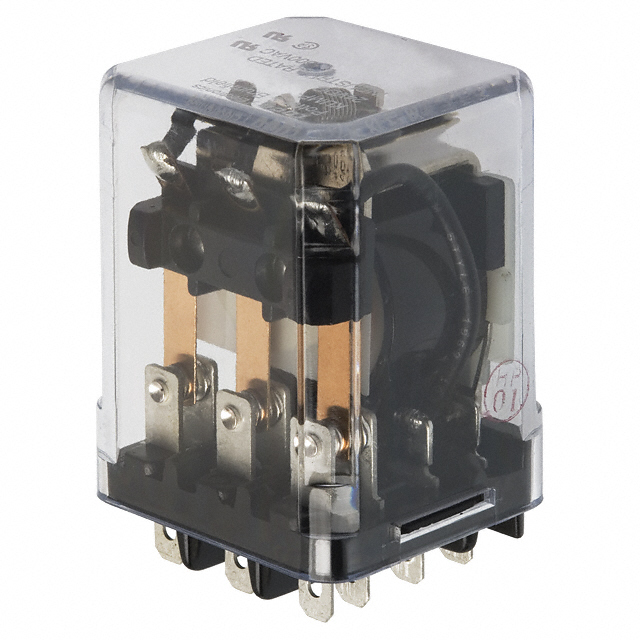

KUMP-12AT8-24

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PST 15A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PST 15A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KUMP-12AT8-24

Approval Agency	CSA, UR
Coil Current	115 mA
Coil Insulation	Class B
Coil Resistance	72 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	3PST-NO (3 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	15 A
Load - Max Switching	4155 VA
Mounting Type	Chassis Mount
Operate Time	15 ms
Operating Temperature [Max] [custom]	45 °C
Operating Temperature [Min] [custom]	-45 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage [Max]	277 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)

Part	Load - Max Switching	Coil Current	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Contact Material	Relay Type	Coil Type	Coil Voltage	Mounting Type	Coil Insulation	Contact Form	Release Time	Termination Style	Approval Agency	Contact Rating (Current)	Switching Voltage [Max]	Operate Time	Coil Resistance
TE Connectivity Potter & Brumfield Relays KUMP-12AT8-24	4155 VA	115 mA	45 °C	-45 °C	Silver Cadmium Oxide (AgCdO)	General Purpose	Non Latching	24 VAC	Chassis Mount	Class B	3PST-NO (3 Form A)	10 ms	Quick Connect - 0.187" (4.7mm)	CSA UR	15 A	277 VAC	15 ms	72 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 72.09

General part information

General Purpose Relay 3PST-NO (3 Form A) 24VAC Coil Chassis Mount
