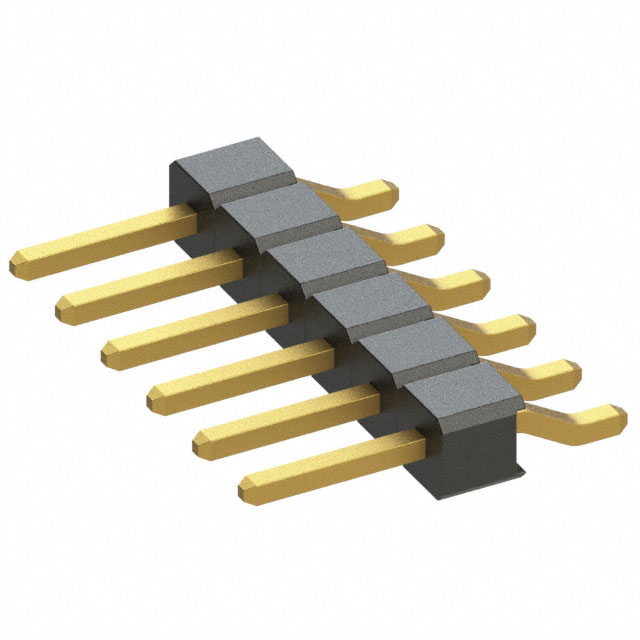

M22-5330605

Active

Harwin Inc.

CONNECTOR, HEADER, 6POS, 1ROW, 2MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, HEADER, 6POS, 1ROW, 2MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M22-5330605

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	4.2 mm
Contact Length - Mating	0.165 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Color	Mounting Type	Contact Finish - Post	Contact Shape	Contact Type	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Style	Shrouding	Contact Finish - Mating	Fastening Type	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Rows	Termination	Insulation Material	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions
Harwin Inc. M22-5330505R	Black	Surface Mount Right Angle	Gold	Square	Male Pin	Cuttable Header	0.079 in	2 mm	Brass	Board to Board Cable	Unshrouded	Gold	Push-Pull	All	2 A	4.2 mm	0.165 in	Flash	UL94 V-0	1	Solder	Nylon 9T Polyamide (PA9T)	Flash	-40 °C	105 ░C	0.079 in	2 mm
Harwin Inc. M22-5330605	Black	Surface Mount Right Angle		Square	Male Pin	Cuttable Header	0.079 in	2 mm	Brass	Board to Board Cable	Unshrouded	Gold	Push-Pull	All	2 A	4.2 mm	0.165 in	Flash	UL94 V-0	1	Solder	Nylon 6T Polyamide (PA6T)		-40 °C	105 ░C	0.079 in	2 mm	6
Harwin Inc. M22-5331405	Black	Surface Mount Right Angle		Square	Male Pin	Cuttable Header	0.079 in	2 mm	Brass	Board to Board Cable	Unshrouded	Gold	Push-Pull	All	2 A	4.2 mm	0.165 in	Flash	UL94 V-0	1	Solder	Nylon 6T Polyamide (PA6T)		-40 °C	105 ░C	0.079 in	2 mm	14
