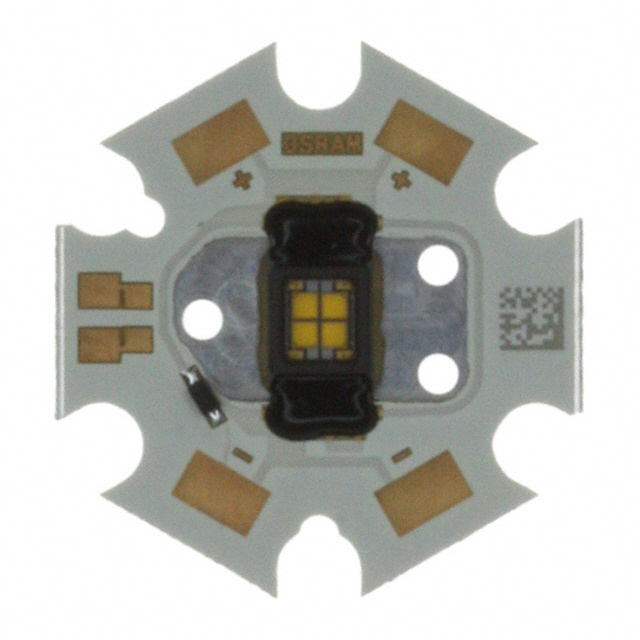

LE CW E2A-LYNX-URVU

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR WM WH STARBOARD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR WM WH STARBOARD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Type	Size / Dimension [diameter]	CRI (Color Rendering Index)	Color	Configuration	Viewing Angle	CCT (K)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Height [z]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Current - Max [Max]	Type
ams-OSRAM USA INC. LE CW E2A-LYMZ-H3K5	Flat	19.9 mm	80	Neutral White	Starboard	120 °	4200 K	130 lm	280 lm	205 lm	2.53 mm	21 lm/W	2.11 mm	2.11 mm	1 A	LED Module
ams-OSRAM USA INC. LE CW E2A-MXNY-QRRU	Flat	19.9 mm	80	Warm White	Starboard	120 °					2.53 mm		2.11 mm	2.11 mm	1 A	LED Module
ams-OSRAM USA INC. LE CW E2A-MXNZ-ORPU	Flat	19.9 mm	80	Warm White	Starboard	120 °					2.53 mm		2.11 mm	2.11 mm	1 A	LED Module
ams-OSRAM USA INC. LE CW E2A-LXMY-N3P5	Flat	19.9 mm	80	Warm White	Starboard	120 °		112 lm	240 lm		2.53 mm	18 lm/W	2.11 mm	2.11 mm	1 A	LED Module
ams-OSRAM USA INC. LE CW E2A-LYNX-URVU	Flat	19.9 mm	80	Warm White	Starboard	120 °					2.53 mm		2.11 mm	2.11 mm	1 A	LED Module
ams-OSRAM USA INC. LE CW E2A-MXNZ-MRNU	Flat	19.9 mm	80	Warm White	Starboard	120 °					2.53 mm		2.11 mm	2.11 mm	1 A	LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Ostar White, Warm Starboard
