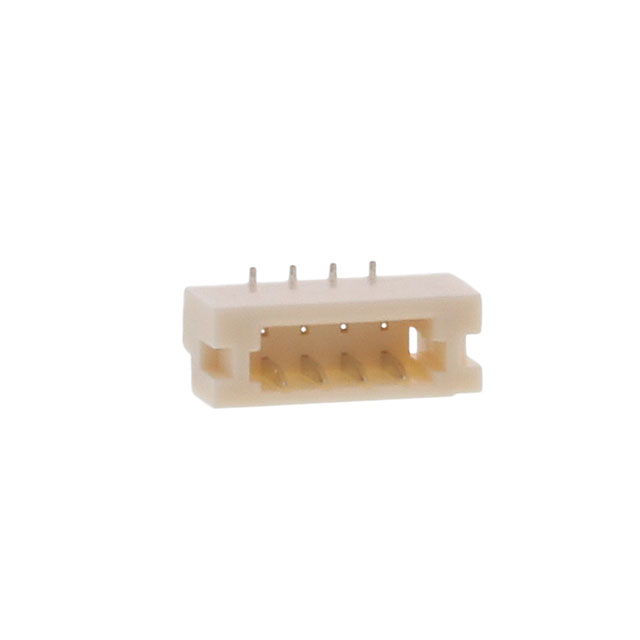

BM04B-SURS-TF

Active

JST Sales America Inc.

CONN HEADER 4POS .8MM TIN

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER 4POS .8MM TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BM04B-SURS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	0.2 A, 0.5 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height [z]	2.7 mm
Insulation Height [z]	0.106 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	3.95 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC

Part	Contact Type	Number of Positions Loaded	Material Flammability Rating	Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Fastening Type	Shrouding	Insulation Height [z]	Insulation Height [z]	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Number of Positions	Connector Type	Mated Stacking Heights	Termination	Contact Shape	Insulation Color	Current Rating (Amps)	Contact Finish - Post	Features
JST Sales America Inc. BM04B-SURS-TF	Outer Shroud Contact	All	UL94 V-0	Board to Cable/Wire	Surface Mount	-25 °C	85 °C	30 VDC	Push-Pull	Shrouded - 4 Wall	2.7 mm	0.106 in	Nylon Polyamide (PA)	0.031 in	0.8 mm	1	Copper Alloy	4	Header	3.95 mm	Solder	Rectangular	Natural	0.2 A 0.5 A	Tin	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.031" (0.80mm)
