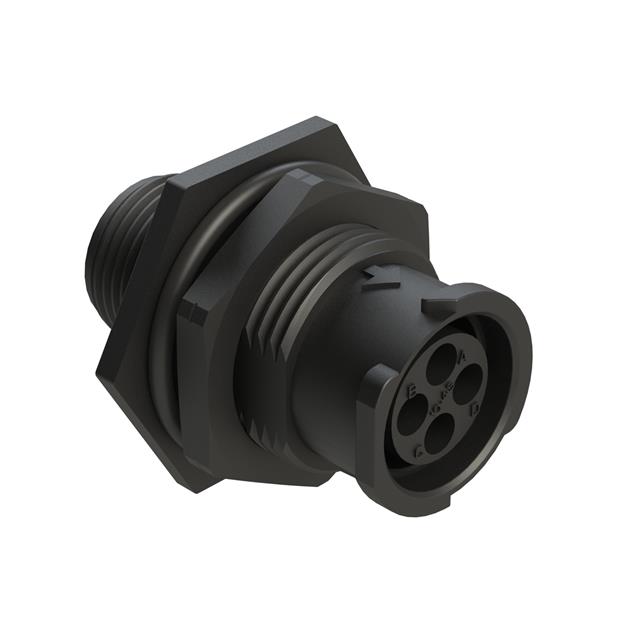

FLS710N4S03

Active

Amphenol Sine Systems Corp

4 POSITION JAM NUT RECEPTACLE, S

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

4 POSITION JAM NUT RECEPTACLE, S

Technical Specifications

Parameters and characteristics for this part

Specification	FLS710N4S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	10-4
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Size - Insert	Contact Size	Insert Material	Material Flammability Rating	Fastening Type	Contact Type	Mounting Feature	Type	Primary Material	Note	Orientation	Contact Shape	Ingress Protection	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Number of Positions	Contact Size	Features
Amphenol Sine Systems Corp FLS710N3S03	10-3	16	Thermoplastic	UL94 V-0	Bayonet Lock	Crimp	Bulkhead - Front Side Nut	For Female Sockets	Plastic	Contacts Not Included	N	Circular	IP67 IP68 IP69K	Unshielded	125 °C	-40 °C	Receptacle Housing	Black
Amphenol Sine Systems Corp FLS710N6P03	10-6	20	Thermoplastic	UL94 V-0	Bayonet Lock	Crimp	Bulkhead - Front Side Nut	For Male Pins	Plastic	Contacts Not Included	N	Circular	IP67 IP68 IP69K	Unshielded	125 °C	-40 °C	Receptacle Housing	Black	6
Amphenol Sine Systems Corp FLS710N4S03	10-4	16	Thermoplastic	UL94 V-0	Bayonet Lock	Crimp	Bulkhead - Front Side Nut	For Female Sockets	Plastic	Contacts Not Included	N	Circular	IP67 IP68 IP69K	Unshielded	125 °C	-40 °C	Receptacle Housing	Black	4
Amphenol Sine Systems Corp FLS710N3W3P03	10-3W3		Thermoplastic	UL94 V-0	Bayonet Lock	Crimp	Bulkhead - Front Side Nut	For Male Pins	Plastic	Contacts Not Included	N	Circular	IP67 IP68 IP69K	Unshielded	125 °C	-40 °C	Receptacle Housing	Black	6	16 (3) 20 (3)
Amphenol Sine Systems Corp FLS710N4PHEC03	10-4	16	Thermoplastic	UL94 V-0	Bayonet Lock	Crimp	Bulkhead - Front Side Nut	For Male Pins	Plastic	Contacts Not Included	N	Circular	IP67 IP68 IP69K	Unshielded	125 °C	-40 °C	Receptacle Housing	Black	4		Cap (Cover)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
