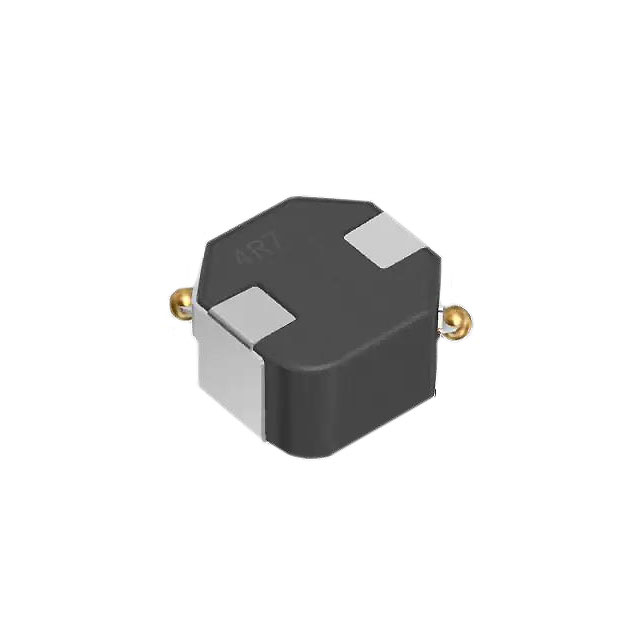

SPM5030VT-R10M-D - SPM5030VT-R10M-D

SPM5030VT-R10M-D

Active
EPCOS - TDK Electronics

GENERAL PURPOSE INDUCTOR, 0.1UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2120, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsREACH SVHC: Safe Use Data ENTechnical Data Sheet EN+1
SPM5030VT-R10M-D - SPM5030VT-R10M-D

SPM5030VT-R10M-D

Active
EPCOS - TDK Electronics

GENERAL PURPOSE INDUCTOR, 0.1UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2120, CHIP

Deep-Dive with AI

DocumentsREACH SVHC: Safe Use Data ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSPM5030VT-R10M-D
Current - Saturation (Isat)37.1 A
Current Rating (Amps)18.3 A
DC Resistance (DCR)2.7 mOhm
Height - Seated (Max)3 mm
Height - Seated (Max) [Max]0.118 in
Inductance100 nH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]0.209 "
Size / Dimension [x]5.3 mm
Size / Dimension [y]5.1 mm
Size / Dimension [y]0.201 "
Supplier Device Package5030
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.26
10$ 1.06
25$ 0.97
50$ 0.91
100$ 0.75
250$ 0.70
500$ 0.66
1000$ 0.60
Digi-Reel® 1$ 1.26
10$ 1.06
25$ 0.97
50$ 0.91
100$ 0.75
250$ 0.70
500$ 0.66
1000$ 0.60
Tape & Reel (TR) 2000$ 0.47
NewarkEach (Supplied on Cut Tape) 1$ 1.20
10$ 0.78
25$ 0.74
50$ 0.70
100$ 0.65
250$ 0.61
1000$ 0.40

Description

General part information

SPM5030VT Series

100 nH Shielded Drum Core, Wirewound Inductor 18.3 A 2.7mOhm Nonstandard
