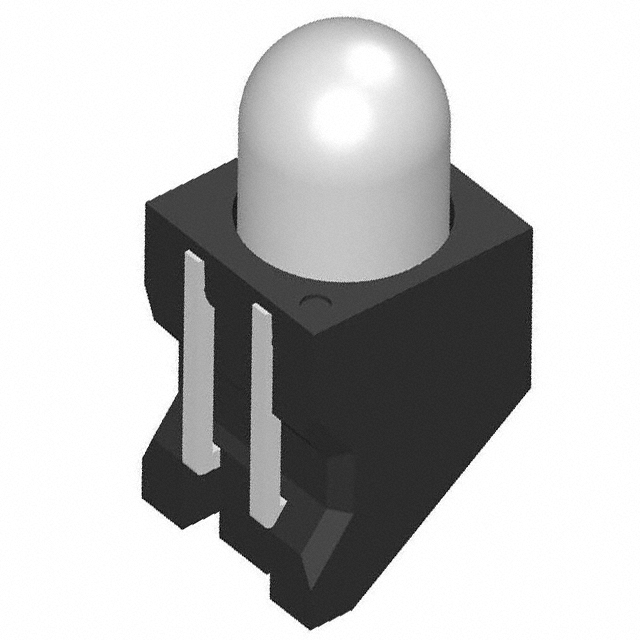

HT5-RED-T

Obsolete

Bivar Inc.

LED CBI 5MM RED SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT5-RED-T

Obsolete

Bivar Inc.

LED CBI 5MM RED SMD RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT5-RED-T

Color	Red
Configuration	Single
Current	30 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	25 mcd
Mounting Type	Surface Mount, Right Angle
Viewing Angle	45 °
Voltage Rating	2 V

HT5-RED Series

Part	Lens Size	Lens Size	Mounting Type	Voltage Rating	Lens Type	Millicandela Rating	Viewing Angle	Current	Lens Style	Color	Configuration
Bivar Inc. HT5-RED-T	T-1 3/4	5 mm	Surface Mount Right Angle	2 V	Diffused Tinted	25 mcd	45 °	30 mA	Round with Domed Top	Red	Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HT5-RED Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 30mA Round with Domed Top 5mm, T-1 3/4 Surface Mount, Right Angle
