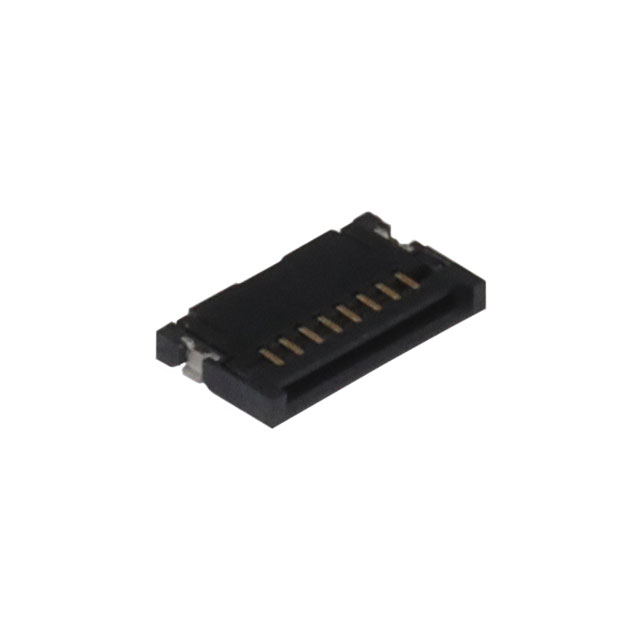

10062827-0810EDLF

Obsolete

Amphenol ICC (FCI)

CONN FPC BOTTOM 8POS 0.5MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FPC BOTTOM 8POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10062827-0810EDLF

Actuator Color	Black
Actuator Material	Thermoplastic, Glass Filled
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	400 mA
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.12 mm
Flat Flex Type	FPC
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Housing Color	Black
Housing Material	Thermoplastic, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Contact Finish	Mounting Type	Connector/Contact Type	Termination	Voltage Rating	Actuator Color	Mating Cycles	Contact Material	Cable End Type	Housing Material	Actuator Material	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Locking Feature	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Features	Flat Flex Type
Amphenol ICC (FCI) 10062827-0810EDLF	UL94 V-0	Gold	Surface Mount Right Angle	Contacts Bottom	Solder	50 V	Black	10	Copper Alloy	Straight	Thermoplastic Glass Filled	Thermoplastic Glass Filled	400 mA	0.5 mm	0.02 in	8	85 °C	-55 °C	Black	Slide Lock	0.12 mm	0.71 mm	0.028 in	Solder Retention Zero Insertion Force (ZIF)	FPC
Amphenol ICC (FCI) 10062827-0410EDLF	UL94 V-0	Gold	Surface Mount Right Angle	Contacts Bottom	Solder	50 V	Black		Copper Alloy	Notched	Thermoplastic Glass Filled	Thermoplastic Glass Filled	400 mA	0.5 mm	0.02 in	4	85 °C	-55 °C	Black	Backlock Flip Lock	0.12 mm	0.71 mm	0.028 in	Solder Retention Zero Insertion Force (ZIF)	FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
