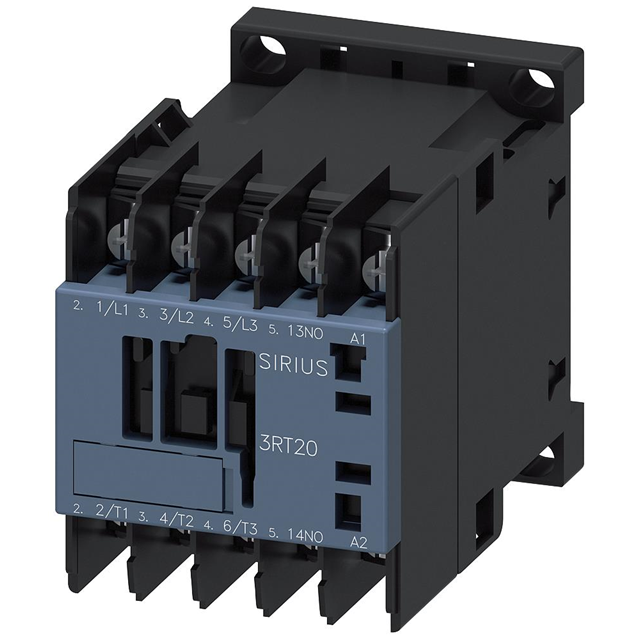

3RT20174AK61

Active

Siemens

CONTACTOR S00 12A 120VAC 1NO R L

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper SIRIUS Contactor Selection Guide.pdy +3

3RT20174AK61

Active

Siemens

CONTACTOR S00 12A 120VAC 1NO R L

Deep-Dive with AI

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper SIRIUS Contactor Selection Guide.pdy +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20174AK61

Coil Power	36 VA
Coil Voltage	120 VAC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	12 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	96 VAC
Operate Time	35 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	13 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RT2017 Series

...

Part	Coil Voltage	Operate Time	Features	Mounting Type	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Contact Rating (Current)	Coil Power	Must Operate Voltage	Termination Style	Switching Voltage
Siemens 3RT20172BG41	125 VDC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	4 W	100 VDC	Screw Terminal	690 VAC
Siemens 3RT20171WB41	24 VDC	120 ms	Auxiliary Contacts	Chassis Mount DIN Rail	20 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	1.6 W	20.4 VDC	Screw Terminal	690 VAC
Siemens 3RT20171FB42	24 VDC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	65 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	4 W	19.2 VDC	Screw Terminal	690 VAC
Siemens 3RT20172KG41						-25 °C	60 °C					Spring Terminal
Siemens 3RT20174AK61	120 VAC	35 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	36 VA	96 VAC	Screw Terminal	690 VAC
Siemens 3RT20172LB42	24 VDC	130 ms	Auxiliary Contacts	Chassis Mount DIN Rail	20 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	2.8 W	16.8 VDC	Screw Terminal	690 VAC
Siemens 3RT20172BB421AA0	24 VDC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	4 W	19.2 VDC	Screw Terminal	690 VAC
Siemens 3RT20172BF42	110 VDC	100 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	4 W	88 VDC	Screw Terminal	690 VAC
Siemens 3RT20171AN21	220 VAC/DC	35 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	33 VA	187 VAC	Screw Terminal	690 VAC
Siemens 3RT20171AH02	48 VAC/DC	35 ms	Auxiliary Contacts	Chassis Mount DIN Rail	13 ms	-25 °C	60 °C	3PST-NO (3 Form A)	12 A	33 VA	40.8 VAC	Screw Terminal	690 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 104.92
