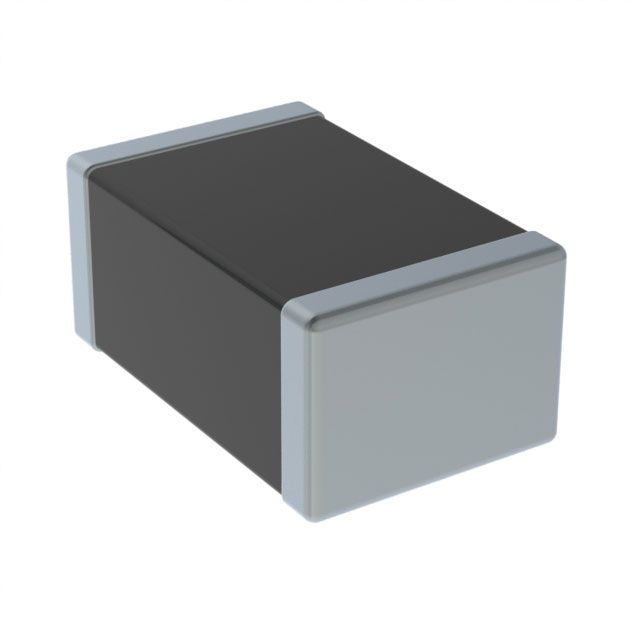

PRG21BC6R8MM1RA
ActiveMurata Power Solutions Inc.
PTC RESET FUSE 30V 120MA 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRG21BC6R8MM1RA
ActiveMurata Power Solutions Inc.
PTC RESET FUSE 30V 120MA 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRG21BC6R8MM1RA |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) [Max] | 120 mA |
| Current - Max [Max] | 5.5 A |
| Current - Trip (It) | 260 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 0805 |
| Resistance - 25°C (Typ) | 6.8 Ohms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Thickness (Max) [Max] [custom] | 0.043 " |
| Thickness (Max) [Max] [custom] | 1.1 mm |
| Type | Ceramic |
| Voltage - Max [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.60 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 4000 | $ 0.31 | ||
| 8000 | $ 0.27 | |||
| 12000 | $ 0.27 | |||
| 20000 | $ 0.26 | |||
| 28000 | $ 0.26 | |||
Description
General part information
PRG21BC Series
Ceramic PTC Resettable Fuse 30V 120 mA Ih Surface Mount 0805 (2012 Metric)
