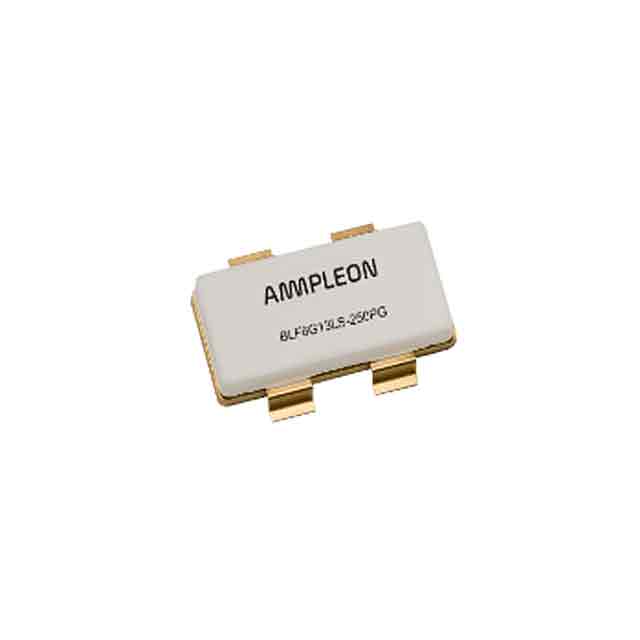

BLF6G13LS-250PGJ

Active

Ampleon USA Inc.

RF FET LDMOS 100V 17DB SOT1121E

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF FET LDMOS 100V 17DB SOT1121E

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Voltage - Test	Supplier Device Package	Frequency	Power - Output	Gain	Voltage - Rated	Current - Test	Frequency [Max]	Frequency [Min]	Configuration	Current Rating (Amps)
Ampleon USA Inc. BLF6G13LS-250PGJ	SOT-1121E	Chassis Mount	50 V	CDFM4	1.3 GHz	250 W	17 dBi	100 V	100 mA
Ampleon USA Inc. BLF6G27LS-40P,118	SOT-1121B	Surface Mount	28 V	LDMOST		12 W	17.5 dBi	65 V	450 mA	2.7 GHz	2.5 GHz	Common Source Dual
Ampleon USA Inc. BLF6G22LS-40P,118	SOT-1121B	Surface Mount	28 V	LDMOST		13.5 W	19 dB	65 V	410 mA	2.17 GHz	2.11 GHz	Common Source Dual	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 222.14

General part information

RF Mosfet 50 V 100 mA 1.3GHz 17dB 250W CDFM4
