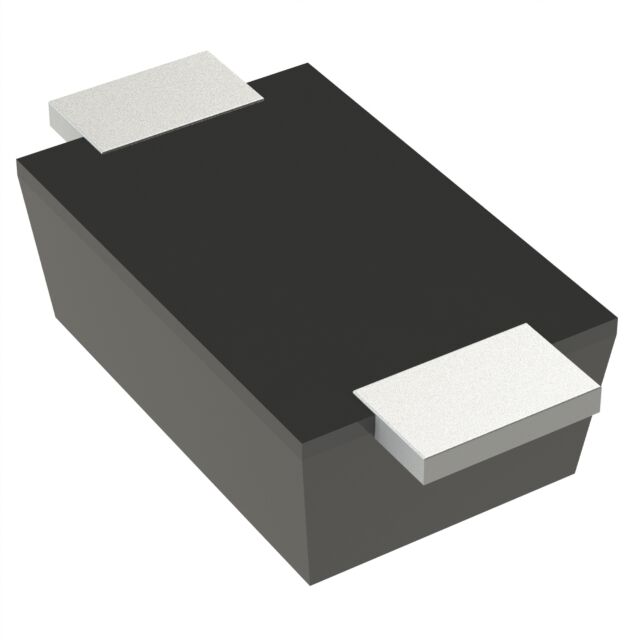

SMF9.0A-AU_R1_000A1

Active

Panjit International Inc.

TVS DIODE 9VWM 15.4VC SOD123FL

Search across all available documentation for this part.

Active

Panjit International Inc.

TVS DIODE 9VWM 15.4VC SOD123FL

Technical Specifications

Parameters and characteristics for this part

Specification	SMF9.0A-AU_R1_000A1

Current - Peak Pulse (10/1000µs)	13 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-123F
Power - Peak Pulse	200 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SOD-123FL
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	10 V
Voltage - Clamping (Max) @ Ipp [Max]	15.4 V
Voltage - Reverse Standoff (Typ)	9 V

Part	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Package / Case	Grade	Mounting Type	Type	Voltage - Breakdown (Min) [Min]	Power Line Protection	Power - Peak Pulse	Unidirectional Channels [custom]	Supplier Device Package
Panjit International Inc. SMF9.0A-AU_R1_000A1	AEC-Q101	-55 °C	150 °C	15.4 V	9 V	13 A	SOD-123F	Automotive	Surface Mount	Zener	10 V		200 W	1	SOD-123FL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.47
	Digi-Reel®	1	$ 0.47
	Tape & Reel (TR)	2250000	$ 0.07

General part information

15.4V Clamp 13A Ipp Tvs Diode Surface Mount SOD-123FL

Technical documentation and resources

No documents available
