430040-512
Laird Thermal Systems, Inc.
HOT20,65,F2A,1312,11,EP,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430040-512
Laird Thermal Systems, Inc.
HOT20,65,F2A,1312,11,EP,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430040-512 |
|---|---|
| Current - Max [Max] | 2 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 2.18 mm |
| Number of Stages | 1 |
| Operating Temperature | 175 °C |
| Qmax @ Th | 8.9 W |
| Resistance | 3.39 Ohms |
| Size / Dimension [x] | 13.16 mm |
| Size / Dimension [y] | 13.16 mm |
| Voltage - Max [Max] | 7.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.44 | |
Description
General part information
430040 Series

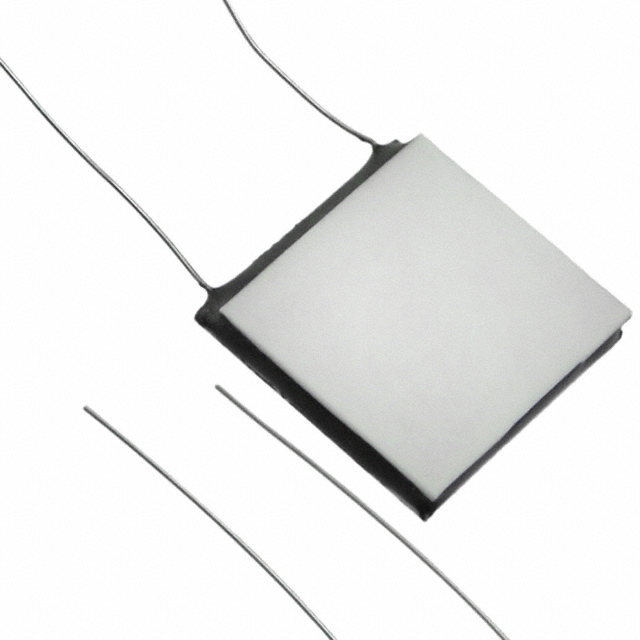

Peltier Module 8.9W @ 25°C 2 A 175°C
