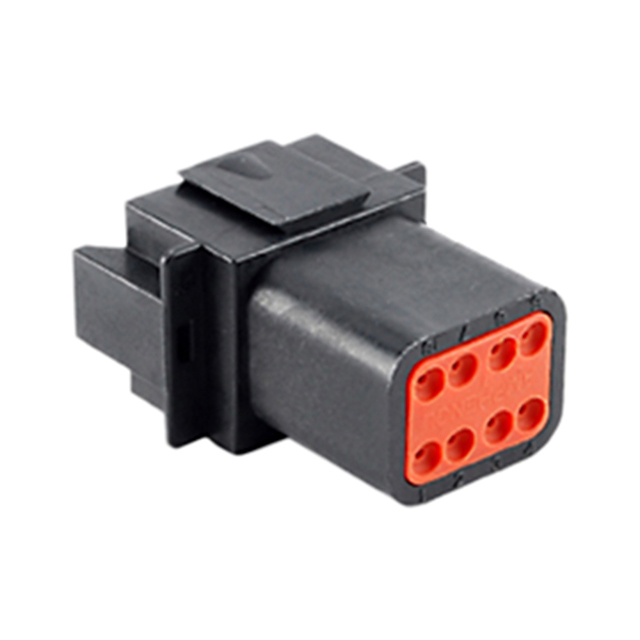

AT04-08PB

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Datasheet

AT04-08PB

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

DocumentsAT Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-08PB

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-08PB Series

Part	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Color	Contact Termination	Number of Rows	Insulation Material	Note	Contact Type	Features	Contact Finish	Wire Type	Cable Termination	Accessory Type	For Use With/Related Products
Amphenol Sine Systems Corp AT04-08PB-MM01	Free Hanging (In-Line)	Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin
Amphenol Sine Systems Corp AT04-08PB-EC01	Free Hanging (In-Line)	Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin	Cap (Cover)
Amphenol Sine Systems Corp AT04-08PB	Free Hanging (In-Line)	Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin
Amphenol Sine Systems Corp AT04-08PB-P026	Free Hanging (In-Line)	Latch Holder			Receptacle	8	Black		2			Male Pin	Cap (Cover) IP67 Sealed	Nickel	Discrete	Crimp
Amphenol Sine Systems Corp AT04-08PB-PM14		Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin	Cap (Cover) Mounting Flange Sealed
Amphenol Sine Systems Corp AT04-08PB-PM12		Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin	Mounting Flange Sealed
Amphenol Sine Systems Corp AT04-08PB-SR2BK	Free Hanging (In-Line)	Latch Holder	-55 °C	125 °C	Receptacle	8	Black	Crimp	2	Thermoplastic	Contacts Not Included	Male Pin	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT04-08PB-G7						8											Gasket	AT Series™
Amphenol Sine Systems Corp AT04-08PB-P028	Free Hanging (In-Line)	Latch Holder			Receptacle	8	Black		2			Male Pin	Cap (Cover) IP67 Sealed	Nickel	Discrete	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.38
		10	$ 3.07
		25	$ 2.91
		50	$ 2.84
		100	$ 2.71
		270	$ 2.37
		540	$ 2.30
		1080	$ 1.96
		2700	$ 1.83

Description

General part information

AT04-08PB Series

8 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

AT Series

Datasheet
