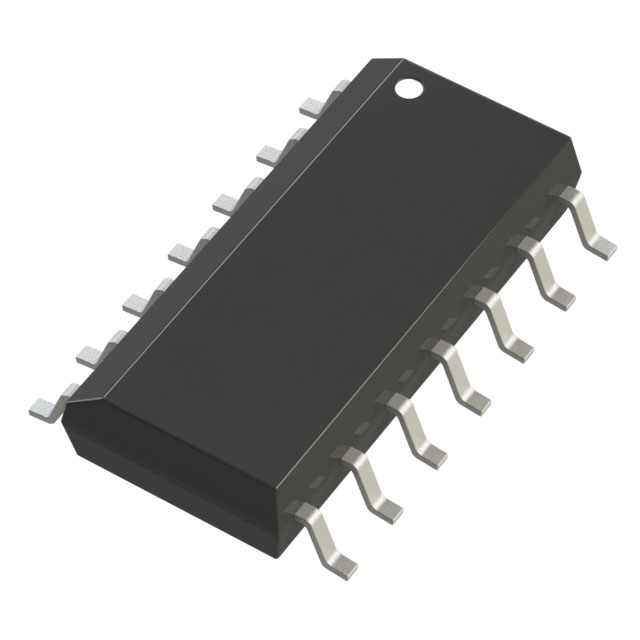

74ABT04D,112

Obsolete

Freescale Semiconductor - NXP

IC INVERTER 6CH 1-INP 14SO

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC INVERTER 6CH 1-INP 14SO

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT04D,112

Current - Output High, Low [custom]	15 mA
Current - Output High, Low [custom]	20 mA
Current - Quiescent (Max) [Max]	50 µA
Input Logic Level - Low	0.8 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	3.4 ns
Mounting Type	Surface Mount
Number of Circuits	6
Number of Inputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	14-SO
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Input Logic Level - Low	Current - Quiescent (Max) [Max]	Number of Inputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Number of Circuits	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Freescale Semiconductor - NXP 74ABT04PW,118	Inverter	15 mA	20 mA	14-TSSOP	0.8 V	50 µA	1	Surface Mount	85 °C	-40 °C	0.173 "	4.4 mm	14-TSSOP	4.5 V	5.5 V	3.4 ns	6
Freescale Semiconductor - NXP 74ABT04D,112	Inverter	15 mA	20 mA	14-SO	0.8 V	50 µA	1	Surface Mount	85 °C	-40 °C			14-SOIC	4.5 V	5.5 V	3.4 ns	6	0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT04DB,118	Inverter	15 mA	20 mA	14-SSOP	0.8 V	50 µA	1	Surface Mount	85 °C	-40 °C			14-SSOP	4.5 V	5.5 V	3.4 ns	6			5.3 mm	0.209 "
Freescale Semiconductor - NXP 74ABT04PW,112	Inverter	15 mA	20 mA	14-TSSOP	0.8 V	50 µA	1	Surface Mount	85 °C	-40 °C	0.173 "	4.4 mm	14-TSSOP	4.5 V	5.5 V	3.4 ns	6
Freescale Semiconductor - NXP 74ABT04DB,112	Inverter	15 mA	20 mA	14-SSOP	0.8 V	50 µA	1	Surface Mount	85 °C	-40 °C			14-SSOP	4.5 V	5.5 V	3.4 ns	6			5.3 mm	0.209 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 6 Channel 14-SO
