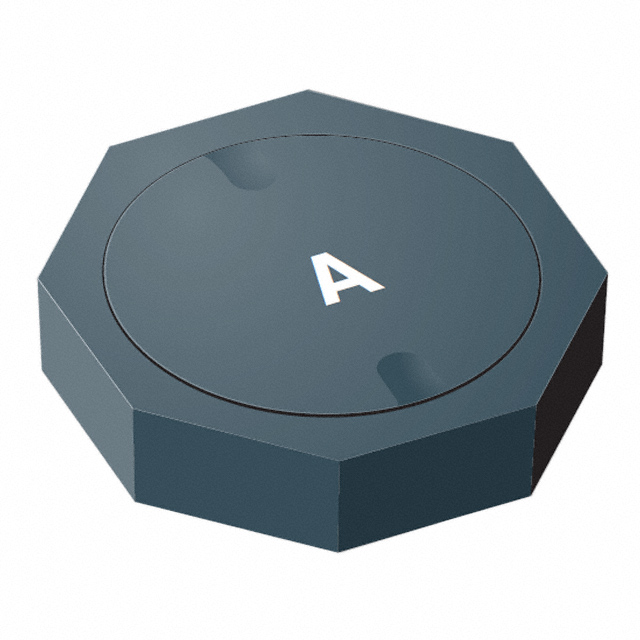

SRU2011-4R7Y
ActiveBourns Inc.
IND2.8X2.8X1.1MM,4.7UH30%0.73A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRU2011-4R7Y
ActiveBourns Inc.
IND2.8X2.8X1.1MM,4.7UH30%0.73A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU2011-4R7Y |
|---|---|
| Current - Saturation (Isat) | 580 mA |
| Current Rating (Amps) | 0.73 A |
| DC Resistance (DCR) | 365 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 6, 7.96 MHz |
| Shielding | Shielded |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.71 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.43 | |||
| Tape & Reel (TR) | 1500 | $ 0.29 | ||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.41 | |
| 5000 | $ 0.40 | |||
| 10000 | $ 0.37 | |||
| 20000 | $ 0.35 | |||
| 30000 | $ 0.32 | |||
| 50000 | $ 0.31 | |||
Description
General part information
SRU2011 Series
4.7 µH Shielded Drum Core, Wirewound Inductor 730 mA 365mOhm Max Nonstandard
