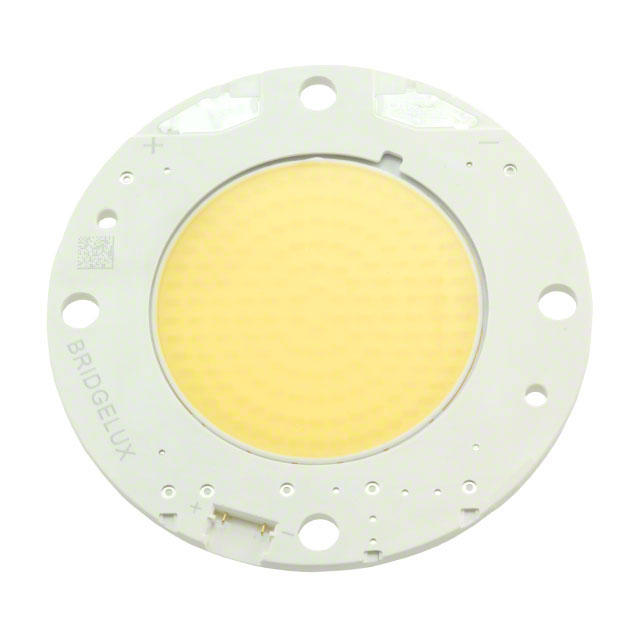

BXRC-56G10K0-L-24

Obsolete

BRIDGELUX

LED COB DECOR CL WH ROUND 5600K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-56G10K0-L-24

Obsolete

BRIDGELUX

LED COB DECOR CL WH ROUND 5600K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-56G10K0-L-24

CCT (K)	5600 K
Color	Cool, White
Configuration	Round
CRI (Color Rendering Index)	90
Current - Max [Max]	4.2 A
Current - Test	2.1 A
Features	With Connector
Height [z]	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	29.2 mm
Lumens/Watt @ Current - Test	114 lm/W
Size / Dimension [diameter]	49.2 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36.8 V

BXRC-56 Series

Part	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Type	Color	Configuration	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Height [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Type	Temperature - Test	Features
BRIDGELUX BXRC-56H10K0-D-74-SE	10423 lm	49.2 mm	29.2 mm	122 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	97	120 °	3.6 mm	2.1 A	37.6 V	Flat
BRIDGELUX BXRC-56H4000-D-74	3508 lm	36.2 mm	18.4 mm	118 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	2.1 A	97	120 °	1.9 mm	1.05 A	28.3 V	Flat	85 °C
BRIDGELUX BXRC-56G10K0-D-74-SE	12002 lm	49.2 mm	29.2 mm	152 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	90	120 °	3.6 mm	2.1 A	37.6 V	Flat
BRIDGELUX BXRC-56G10K0-D-74	12037 lm	49.2 mm	29.2 mm	152 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	90	120 °	1.9 mm	2.1 A	37.6 V	Flat
BRIDGELUX BXRC-56G10K1-D-74-SE	12002 lm	49.2 mm	29.2 mm	152 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	90	120 °	3.6 mm	2.1 A	37.6 V	Flat
BRIDGELUX BXRC-56G4001-D-74-SE		36.2 mm	18.4 mm		Chip On Board (COB)	Cool White	Round	5600 K	2.1 A	90	120 °	3.6 mm			Flat	85 °C
BRIDGELUX BXRC-56G10K1-B-74-SE	14227 lm	49.2 mm	29.2 mm	152 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	3.6 A	90	120 °	3.6 mm	1.8 A	52 V	Flat
BRIDGELUX BXRC-56G10K1-C-74-SE	18038 lm	49.2 mm	29.2 mm	152 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	3.42 A	90	120 °	3.6 mm	1.71 A	69.4 V	Flat
BRIDGELUX BXRC-56H10K0-D-74	10410 lm	49.2 mm	29.2 mm	132 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	97	120 °	1.9 mm	2.1 A	37.6 V	Flat
BRIDGELUX BXRC-56G10K0-L-24		49.2 mm	29.2 mm	114 lm/W	Chip On Board (COB)	Cool White	Round	5600 K	4.2 A	90	120 °	1.9 mm	2.1 A	36.8 V	Flat	85 °C	With Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRC-56 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Specialty Vero® 29 White, Cool Round

Documents

Technical documentation and resources
