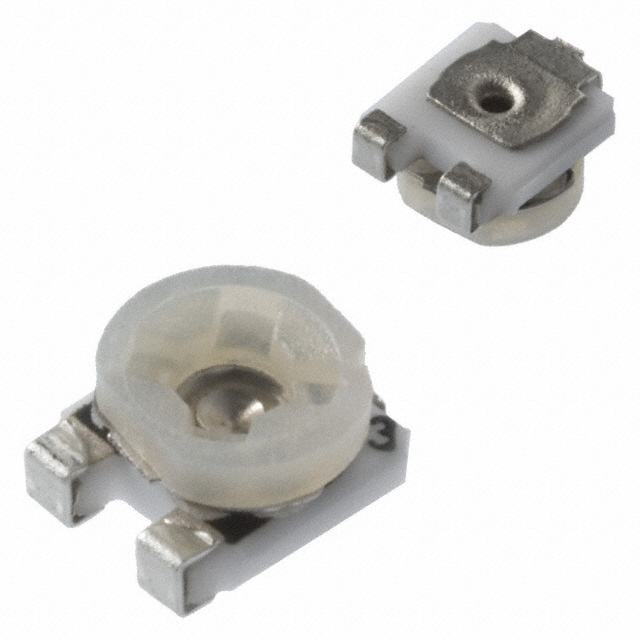

TC03X-2-101E

Obsolete

Bourns Inc.

TRIMMER 100 OHM 0.1W J LEAD TOP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 100 OHM 0.1W J LEAD TOP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Power (Watts)	Power (Watts)	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Termination Style	Temperature Coefficient	Adjustment Type	Resistance	Resistive Material	Mounting Type
Bourns Inc. TC03X-2-202E	1	0.1 W	0.1 W	Rectangular - Face	0.14 "	0.118 in	3.55 mm	3 mm	25 %	J Lead	250 ppm/°C	Top Adjustment	2 kOhms	Cermet	Surface Mount
Bourns Inc. TC03X-2-203E	1	0.1 W	0.1 W	Rectangular - Face	0.14 "	0.118 in	3.55 mm	3 mm	25 %	J Lead	250 ppm/°C	Top Adjustment	20 kOhms	Cermet	Surface Mount
Bourns Inc. TC03X-2-101E	1	0.1 W	0.1 W	Rectangular - Face	0.14 "	0.118 in	3.55 mm	3 mm	25 %	J Lead	250 ppm/°C	Top Adjustment	100 Ohms	Cermet	Surface Mount
Bourns Inc. TC03X-2-502E	1	0.1 W	0.1 W	Rectangular - Face	0.14 "	0.118 in	3.55 mm	3 mm	25 %	J Lead	250 ppm/°C	Top Adjustment	5 kOhms	Cermet	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Ohms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
