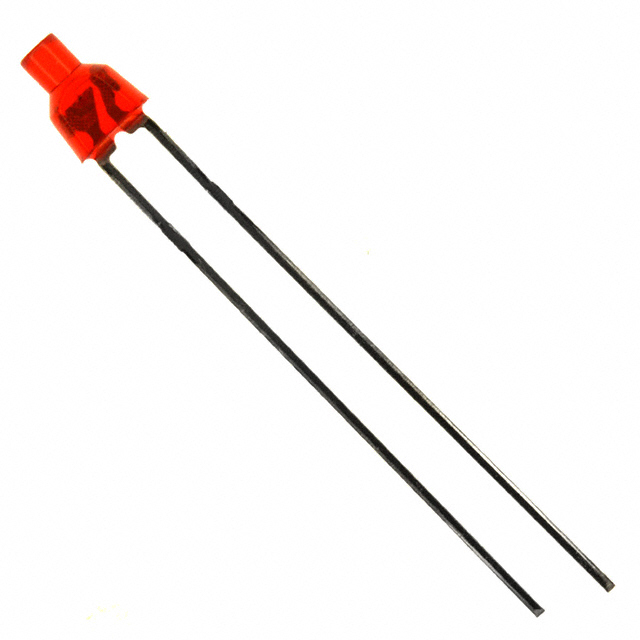

SSL-LX20465ID

Active

Lumex Opto/Components Inc.

LED RED DIFF T-2MM TAPER T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED DIFF T-2MM TAPER T/H

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Lens Color	Configuration	Current - Test	Wavelength - Peak	Lens Size [diameter]	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Color	Lens Transparency	Mounting Type	Package / Case	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX20465LGD	70 °	Green	Standard	20 mA	565 nm	2 mm	5 mm	2.2 V	T-2mm Taper Body	Green	Diffused	Through Hole	Radial	10 mcd
Lumex Opto/Components Inc. SSL-LX20465LID	70 °	Red	Standard	20 mA	635 nm	2 mm	5 mm	2 V	T-2mm Taper Body	Red	Diffused	Through Hole	Radial	25 mcd
Lumex Opto/Components Inc. SSL-LX20465LAD	70 °	Amber	Standard	20 mA	610 nm	2 mm	5 mm	2 V	T-2mm Taper Body	Amber	Diffused	Through Hole	Radial	10 mcd
Lumex Opto/Components Inc. SSL-LX20465YD	70 °	Yellow	Standard	20 mA	585 nm	2 mm	5 mm	2.1 V	T-2mm Taper Body	Yellow	Diffused	Through Hole	Radial	10 mcd
Lumex Opto/Components Inc. SSL-LX20465GD	70 °	Green	Standard	20 mA	565 nm	2 mm	5 mm	2.2 V	T-2mm Taper Body	Green	Diffused	Through Hole	Radial	10 mcd
Lumex Opto/Components Inc. SSL-LX20465ID	70 °	Red	Standard	20 mA	635 nm	2 mm	5 mm	2 V	T-2mm Taper Body	Red	Diffused	Through Hole	Radial	25 mcd
Lumex Opto/Components Inc. SSL-LX20465HD	70 °	Red	Standard	20 mA	700 nm	2 mm	5 mm	2 V	T-2mm Taper Body	Red	Diffused	Through Hole	Radial	3 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red LED Indication - Discrete 2V Radial
