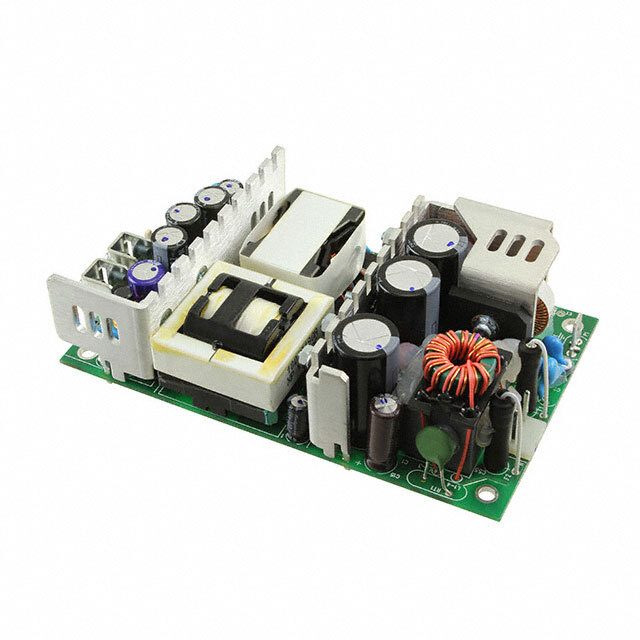

GCS350PS28

Active

XP POWER

AC/DC CONVERTER 28V 200W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 28V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	GCS350PS28

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	7.1 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, Remote Sense, 80 Plus® Silver, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	350 W
Power (Watts)	200 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	28 V

Part	Features	Standard Number	Voltage - Output 1	Applications	Approval Agency	Type	Voltage - Isolation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Power (Watts)	Power (Watts)	Efficiency	Number of Outputs
XP POWER GCS350PS12	80 Plus® Bronze Adjustable Output PFC Remote Sense Universal Input	62368-1	12 V	ITE (Commercial) Medical	CB CE	Open Frame	4000 V	Chassis Mount	-40 °C	70 °C	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	16.7 A	350 W	200 W	93 %	1
XP POWER GCS350PS28	80 Plus® Silver Adjustable Output PFC Remote Sense Universal Input	62368-1	28 V	ITE (Commercial) Medical	CB CE	Open Frame	4000 V	Chassis Mount	-40 °C	70 °C	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	7.1 A	350 W	200 W	93 %	1
XP POWER GCS350PS48	80 Plus® Silver Adjustable Output PFC Remote Sense Universal Input	62368-1	48 V	ITE (Commercial) Medical	CB CE	Open Frame	4000 V	Chassis Mount	-40 °C	70 °C	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	4.2 A	350 W	200 W	93 %	1
XP POWER GCS350PS56	80 Plus® Silver Adjustable Output PFC Remote Sense Universal Input	62368-1	56 V	ITE (Commercial) Medical	CB CE	Open Frame	4000 V	Chassis Mount	-40 °C	70 °C	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	3.6 A	350 W	200 W	93 %	1
XP POWER GCS350PS24	80 Plus® Silver Adjustable Output PFC Remote Sense Universal Input	62368-1	24 V	ITE (Commercial) Medical	CB CE	Open Frame	4000 V	Chassis Mount	-40 °C	70 °C	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	8.3 A	350 W	200 W	93 %	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
