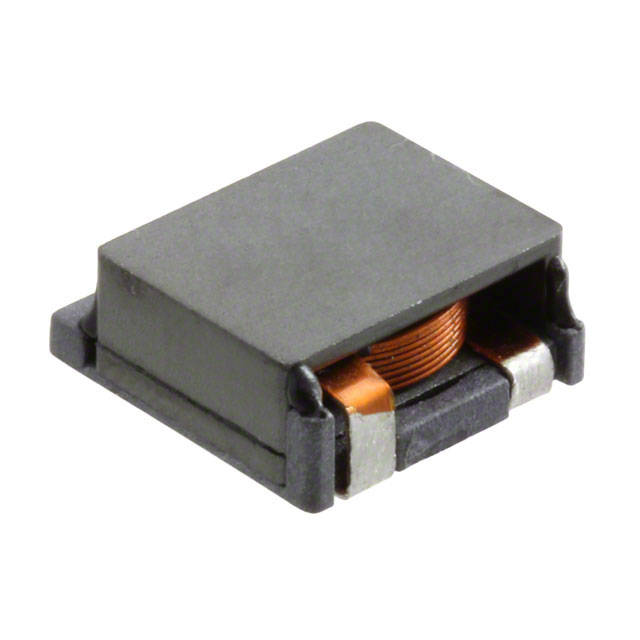

HM65-8R2LFTR13
UnknownTT Electronics/BI Magnetics
FIXED IND 8.2UH 4.5A 11.4 MOHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM65-8R2LFTR13
UnknownTT Electronics/BI Magnetics
FIXED IND 8.2UH 4.5A 11.4 MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HM65-8R2LFTR13 |
|---|---|
| Current Rating (Amps) | 4.5 A |
| DC Resistance (DCR) [Max] | 11.4 mOhm |
| Height - Seated (Max) [Max] | 0.22 in |
| Height - Seated (Max) [Max] | 5.6 mm |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 13.5 mm |
| Size / Dimension [x] | 0.531 in |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.78 | |
| 10 | $ 2.37 | |||
| 25 | $ 2.18 | |||
| 50 | $ 1.95 | |||
| 100 | $ 1.62 | |||
Description
General part information
HM65 Series
8.2 µH Unshielded Wirewound Inductor 4.5 A 11.4mOhm Max Nonstandard
